Chapter 4 Maintaining the Sun Fire X2100 Server 4-47

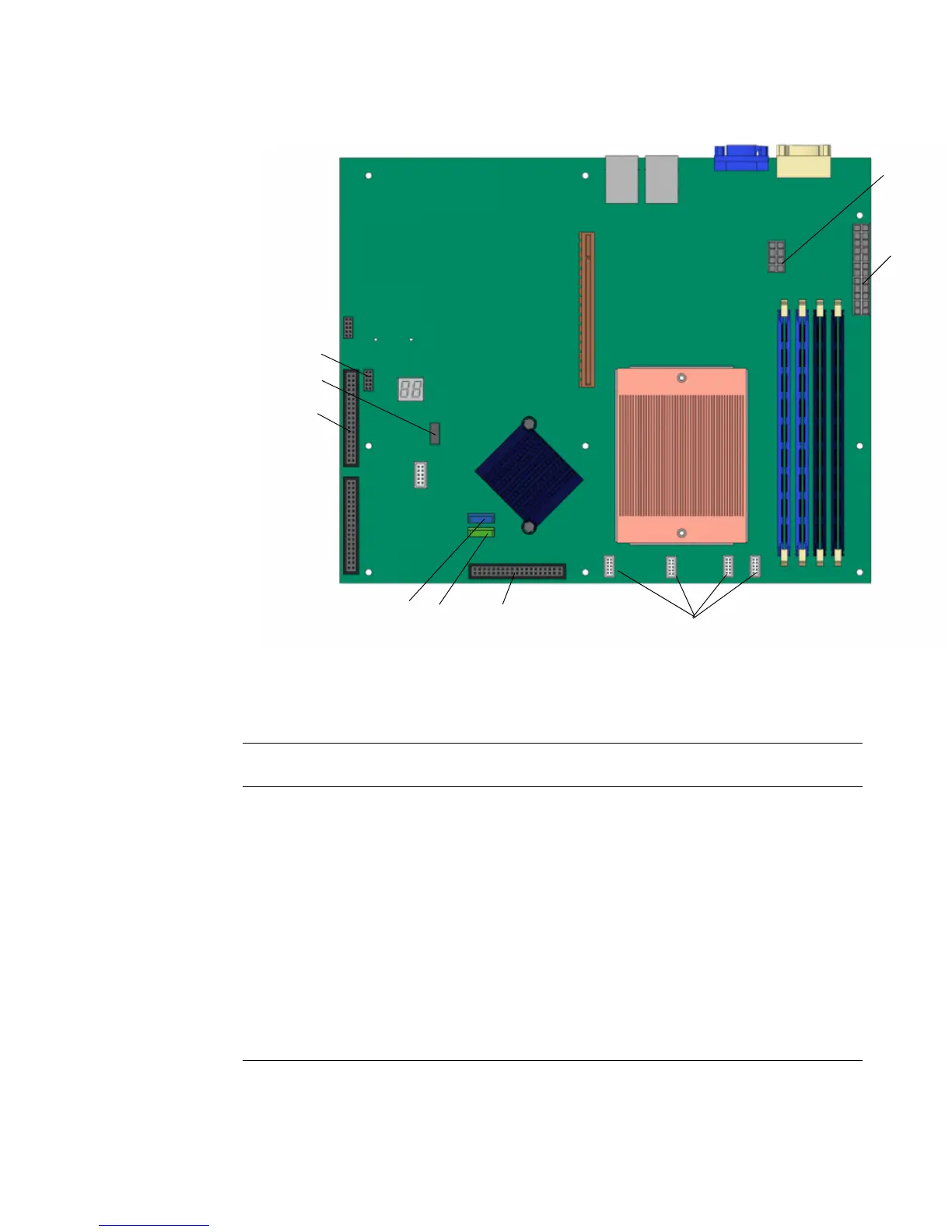

FIGURE 4-37 Motherboard Cable Connection
TABLE 4-3 Motherboard Cable Connections
Label Motherboard connector
Component/board
connection Cable
1 J45 SATA backplane J20
422743500010
2 J 34 Front I/O Board J1
422743500002
3 J46 (SMBC) SATA backplane J16
422743500007
4 SATA1 SATA backplane SATA1
422743500006
5 SATA 2 SATA backplane SATA2
422743500005
6 J33 SATA backplane J10
422743500004
7 Fan plugs 1, 2, 3, CPU SATA backplane J8
422743500011
8 PW1 Power supply P1 Power supply P1
9 PW2 Power supply P3 Power supply P3
1
2
3
45
6
7
8
9
