4-48 Sun Fire X2100 Server User Guide • April 2007

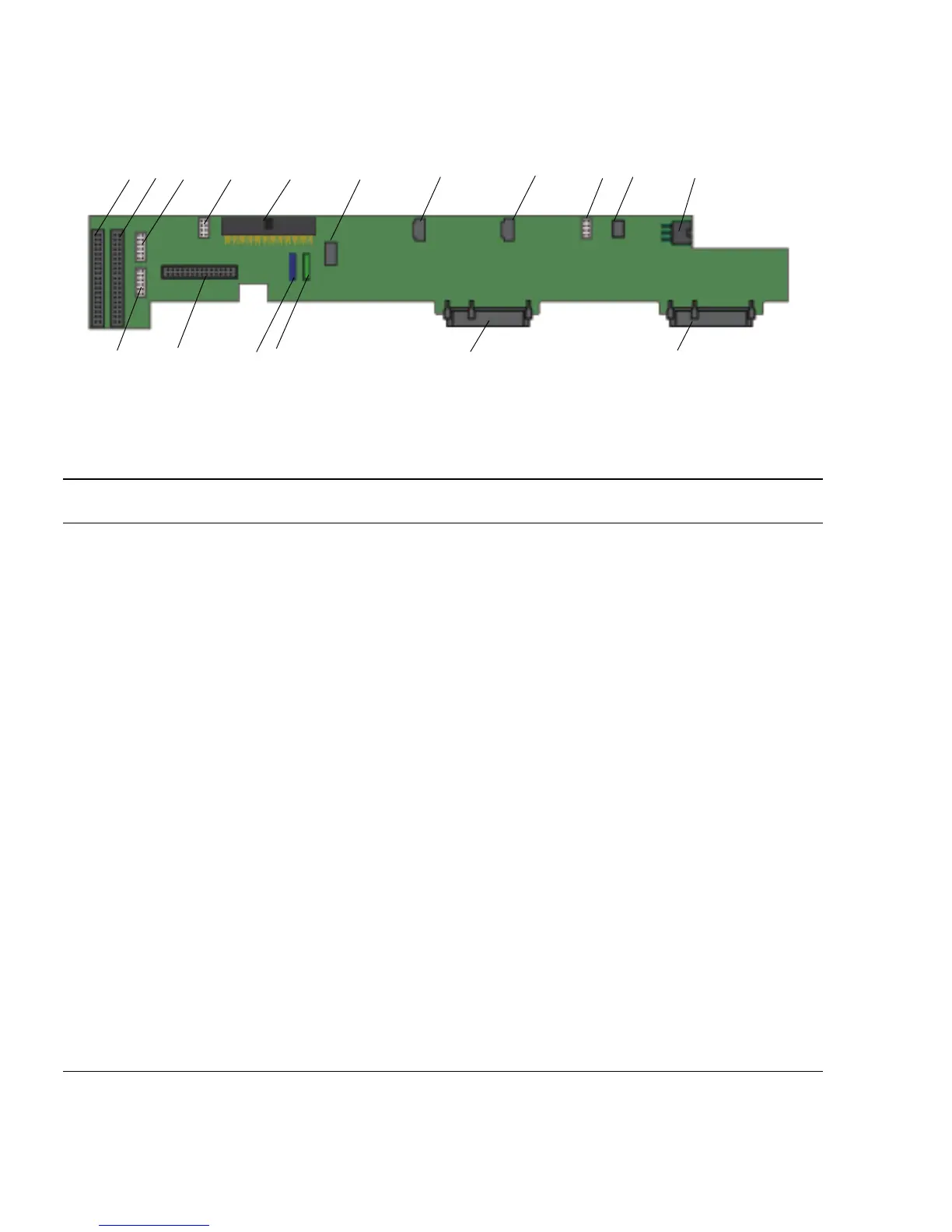

FIGURE 4-38 SATA Backplane Cable Connections
TABLE 4-4 SATA Backplane Cable Connections
Label
SATA Backplane
Connector Component/Board Connector Cable Notes
1 J16 Motherboard J46 (SMBC) 422743500007
2 J17 (SMBC) Service processor (SP) 422743500008 Cable packaged
with SP.
3 J20 Motherboard J45 422743500010
4 J9 Fan 4 Fan 4
5 J10 Motherboard J33 422743500004
6 J8 Motherboard fan plugs 1, 2, 3, CPU 422743500011
7 J6 Fan 3 Fan 3
8 J5 Fan 2 Fan 2
9 J7 Fan 1 Fan 1
10 J18 Rear service indicators 422743500001
11 J15 Power supply P2 Power supply
P2
12 HDD 2 connector HDD 2 N/A
13 HDD 1 connector HDD 1 N/A
14 SATA 2 (green) Motherboard SATA 2 422743500005
15 SATA 1 (blue) Motherboard SATA 1 422743500006
16 J11 DVD 422743500003 Cable packaged
with DVD.
17 J21 Front I/O board J3 422743500009
7
17
23 4156 891011
1213141516
