Chapter 3 Installing the Server Into a Rack With Slide-Rails 59

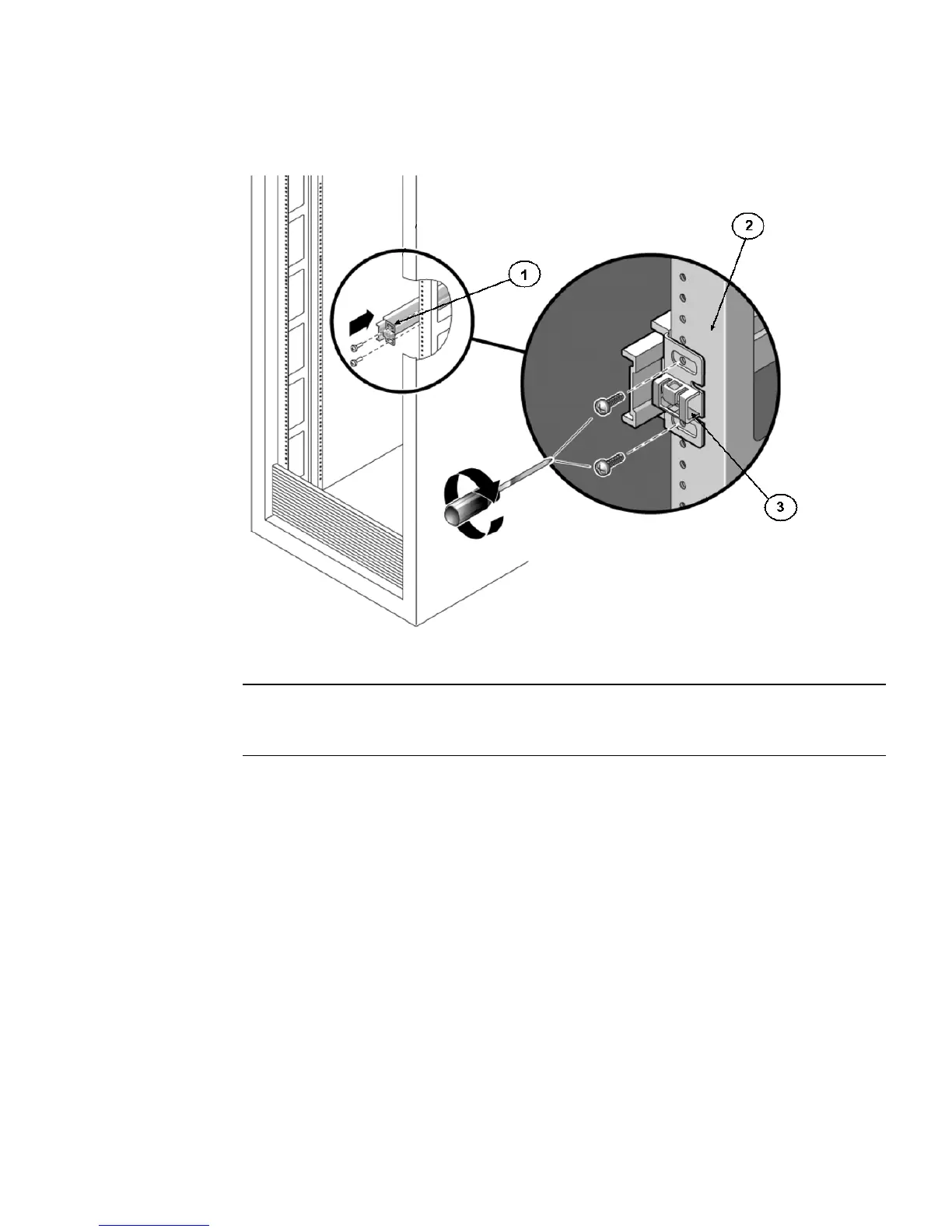

FIGURE 3-3 Attaching Slide-Rail Assembly to Rack Post
3. Repeat Step 1 and Step 2 for the remaining slide-rail assembly.
4. From the front of the rack, set the proper width of the rails with the spacer (see
FIGURE 3-4).
Figure Leg end
1 Sllide-rail assembly
2 Rack post
3 Slide-raid assembly bracket on outside of rack post
