6. Insert the CMA’s mounting bracket connector into the right slide-rail until the
connector locks into place with an audible click (see
FIGURE 3-11).

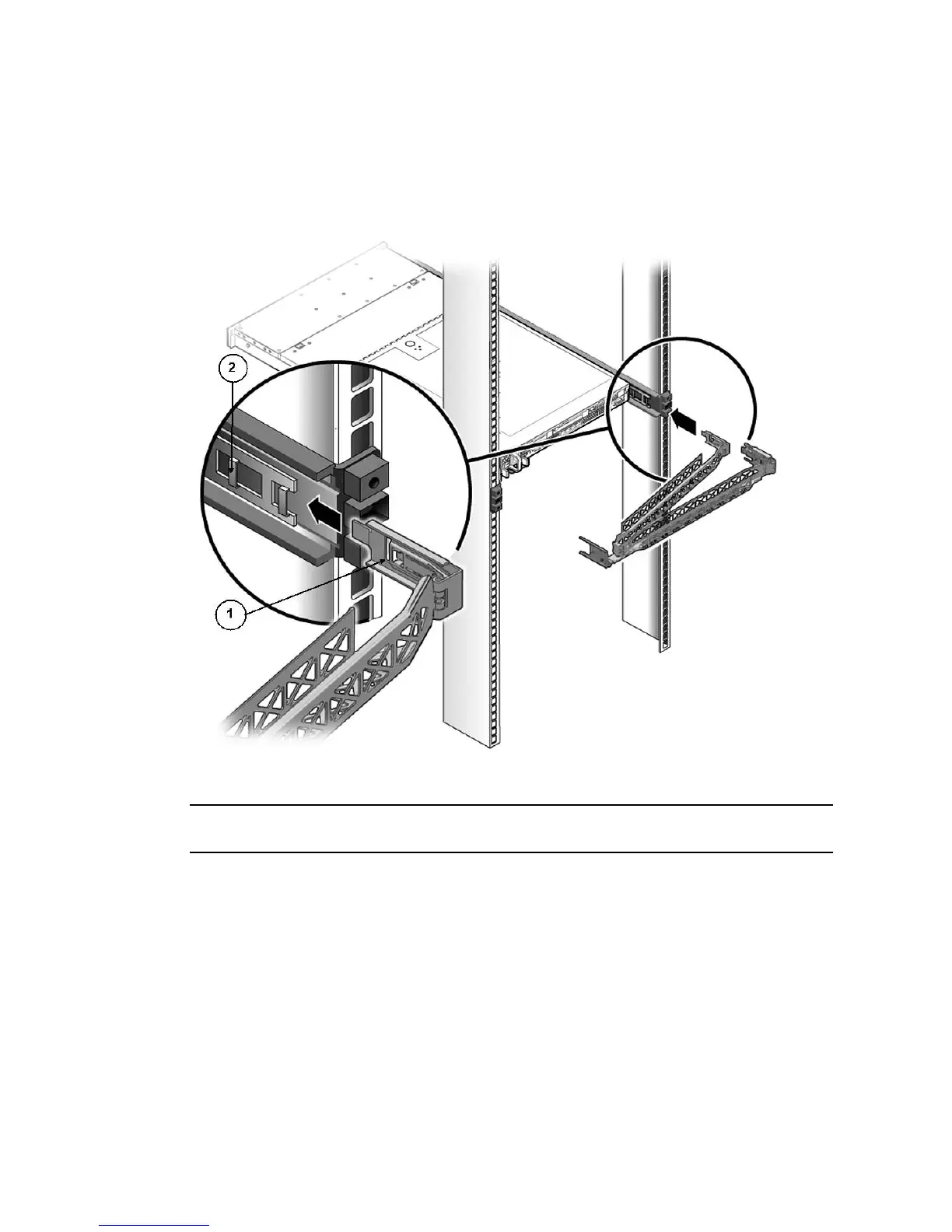

FIGURE 3-11 Inserting the CMA Mounting Bracket Into the Back of the Right Slide-Rail
Figure Leg end
1 CMA mounting bracket
2 Right slide-rail
