Chapter 3 Installing the Server Into a Rack With Slide-Rails 69
7. Insert the right CMA slide-rail connector into the right slide-rail assembly until
the connector locks into place with an audible click (see
FIGURE 3-12).

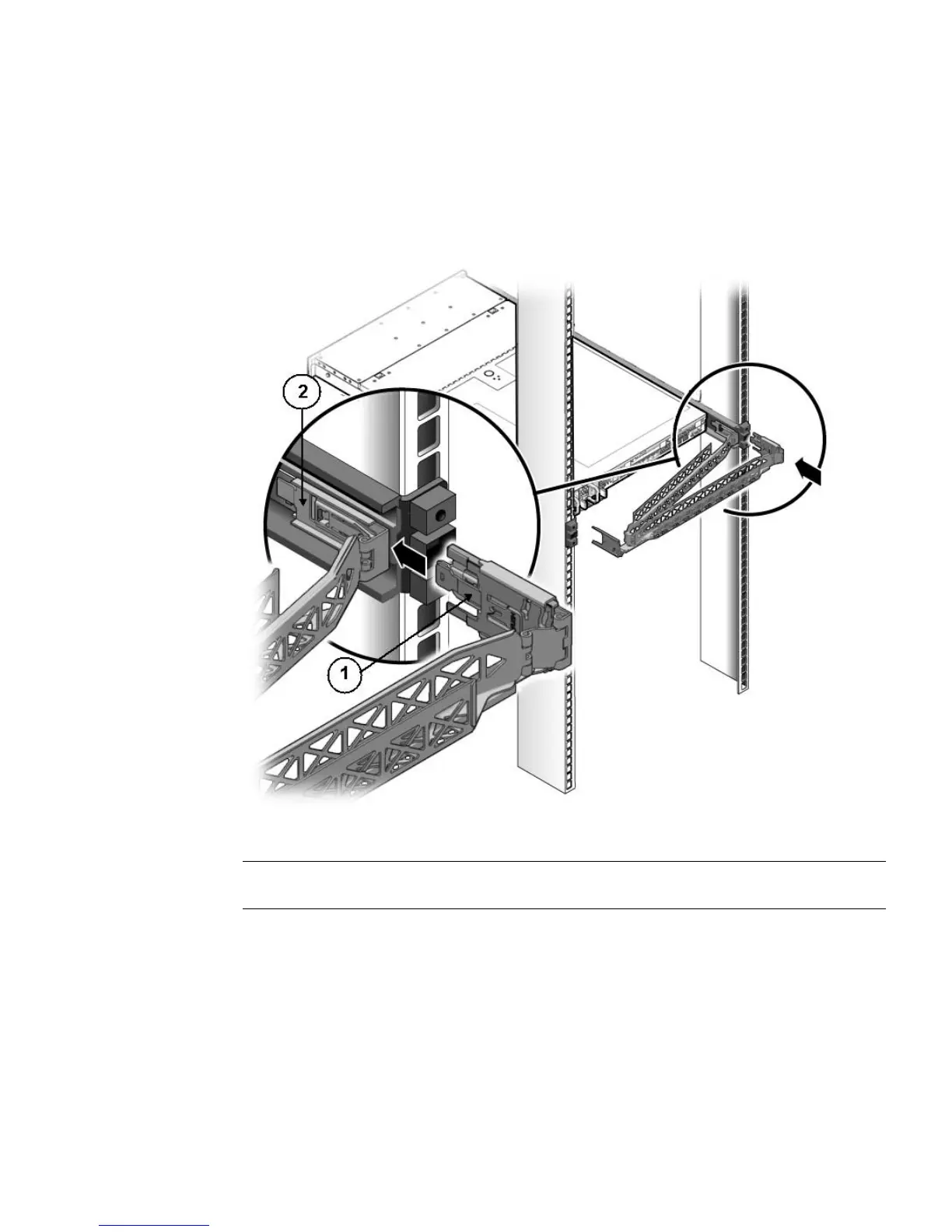

FIGURE 3-12 Inserting CMA Slide-Rail Connector Into the Back of the Right Slide-Rail
Assembly
Figure Leg end
1 CMA slide-rail connector
2 Right slide-rail assembly
