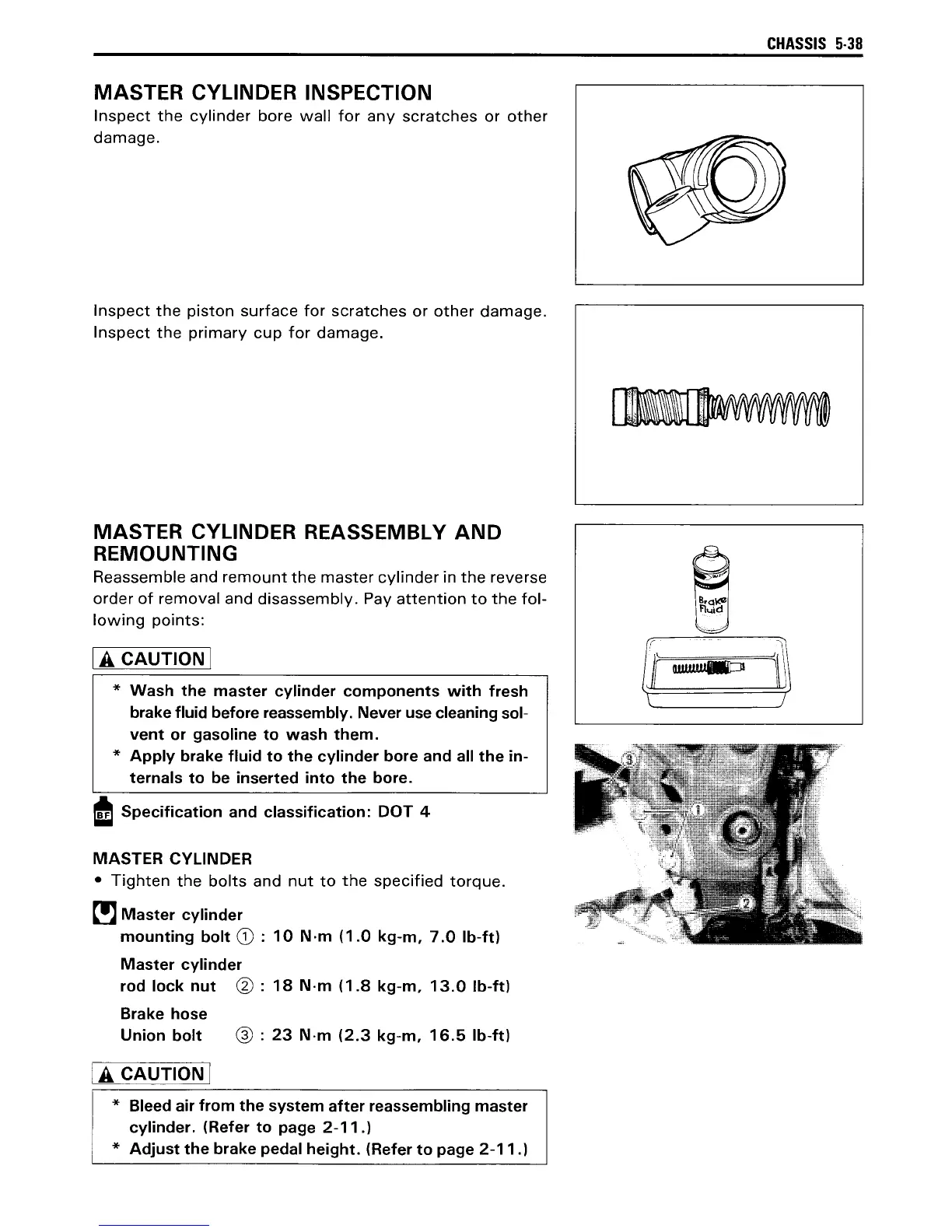

MASTER CYLINDER INSPECTION
Inspect the cylinder bore wall for any scratches or other
damage.
Inspect the piston surface for scratches or other damage.
Inspect the primary cup for damage.
MASTER CYLINDER REASSEMBLY AND
REMOUNTING
Reassemble and remount the master cylinder in the reverse
order of removal and disassembly. Pay attention to the fol-
lowing points:
IA CAUTION I
* Wash the master cylinder components with fresh
brake fluid before reassembly. Never use cleaning sol-
vent or gasoline to wash them.
* Apply brake fluid to the cylinder bore and all the in-
ternals to be inserted into the bore.
III Specification and classification: DOT 4
MASTER CYLINDER
• Tighten the bolts and nut to the specified torque.
~ Master cylinder
mounting bolt CD : 10 N·m (1.0 kg-m, 7.0 Ib-ftl
Master cylinder
rod lock nut @: 18 N·m (1.8 kg-m, 13.0 Ib-ft)
Brake hose
Union bolt
@ : 23 N·m (2.3 kg-m, 16.5 Ib-ftl
IA CAUTION I
* Bleed air from the system after reassembling master
cylinder. (Refer to page 2-11.1
* Adjust the brake pedal height. (Refer to page 2-11.1
