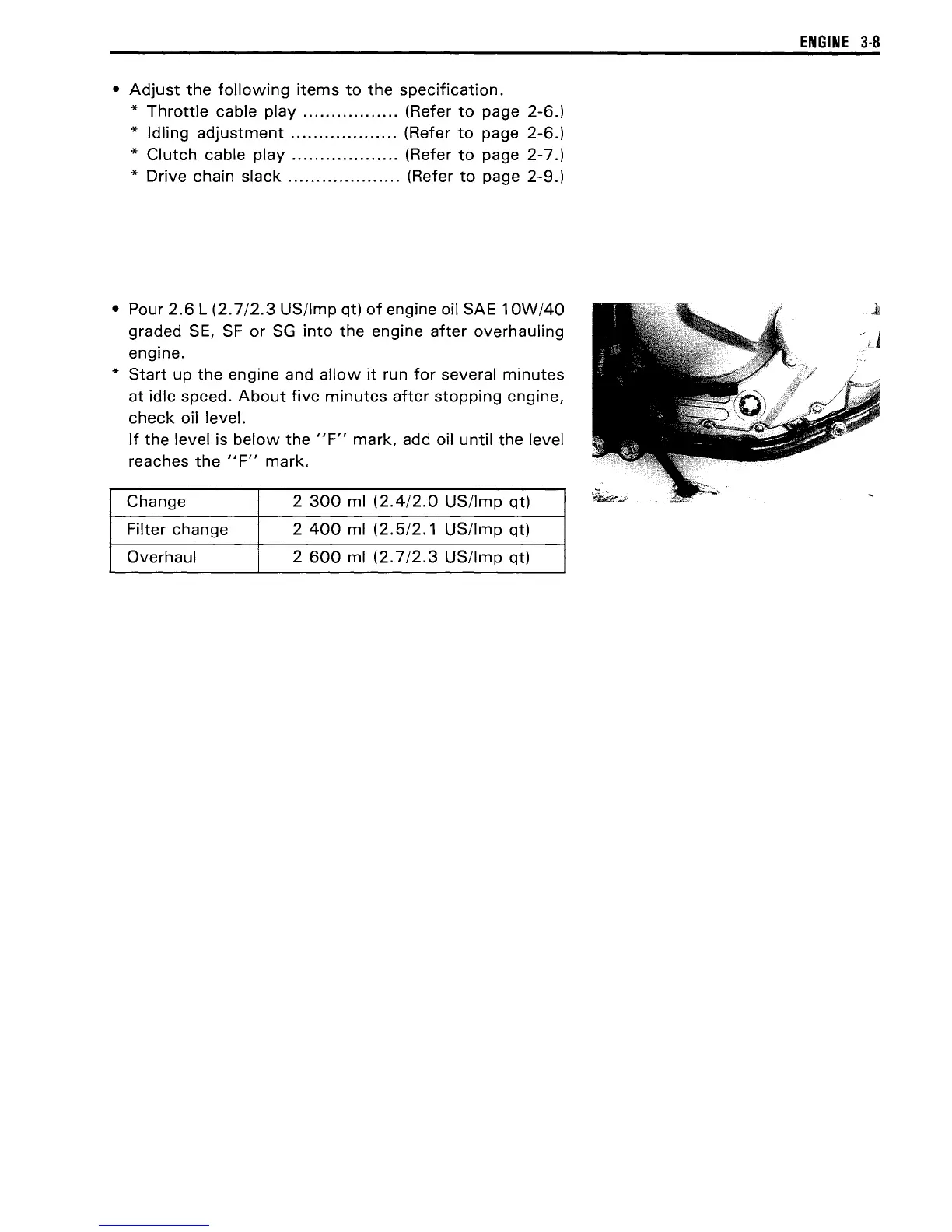

• Adjust the following items to the specification.
* Throttle cable play ................. (Refer to page 2-6.)
* Idling adjustment ................... (Refer to page 2-6.)
* Clutch cable play ................... (Refer to page 2-7.)
* Drive chain slack .................... (Refer to page 2-9.)
• Pour 2.6 L (2.7/2.3 US/Imp qt) of engine oil SAE 10W/40
graded SE, SF or SG into the engine after overhauling
engine.
* Start up the engine and allow it run for several minutes
at idle speed. About five minutes after stopping engine,
check oil level.
If the level is below the "F" mark, add oil until the level
reaches
the "F" mark.
Change 2 300 ml (2.4/2.0 US/Imp qt)
Filter change 2 400 ml (2.5/2.1 US/Imp qt)
Overhaul 2 600 ml (2.7/2.3 US/Imp qt)
ENGINE 3·8
