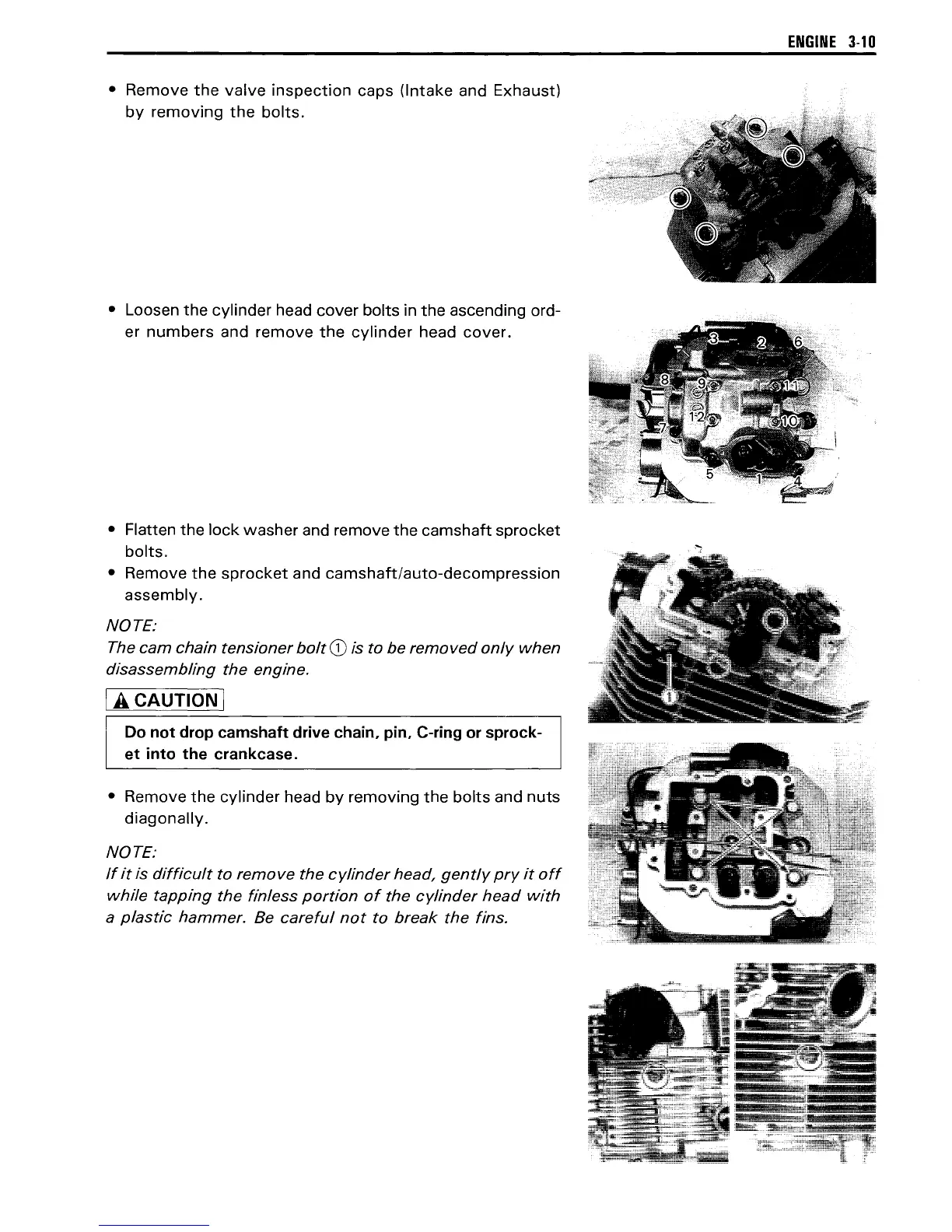

• Remove the valve inspection caps (Intake and Exhaust)
by removing the bolts.
• Loosen the cylinder head cover bolts in the ascending ord-
er
numbers and remove the cylinder head cover.
• Flatten the lock washer and remove the camshaft sprocket
bolts.
• Remove the sprocket and camshaft/auto-decompression
assembly.
NOTE:
The cam chain tensioner bolt CD is to be removed only when
disassembling the engine.
I A. CAUTION I
Do not drop camshaft drive chain, pin, C-ring or sprock-
et into the crankcase.
• Remove the cylinder head by removing the bolts and nuts
diagonally.
NOTE:
If it is difficult to remove the cylinder head, gently pry it off
while tapping the finless portion of the cylinder head with
a plastic hammer. Be careful not to break the fins.
