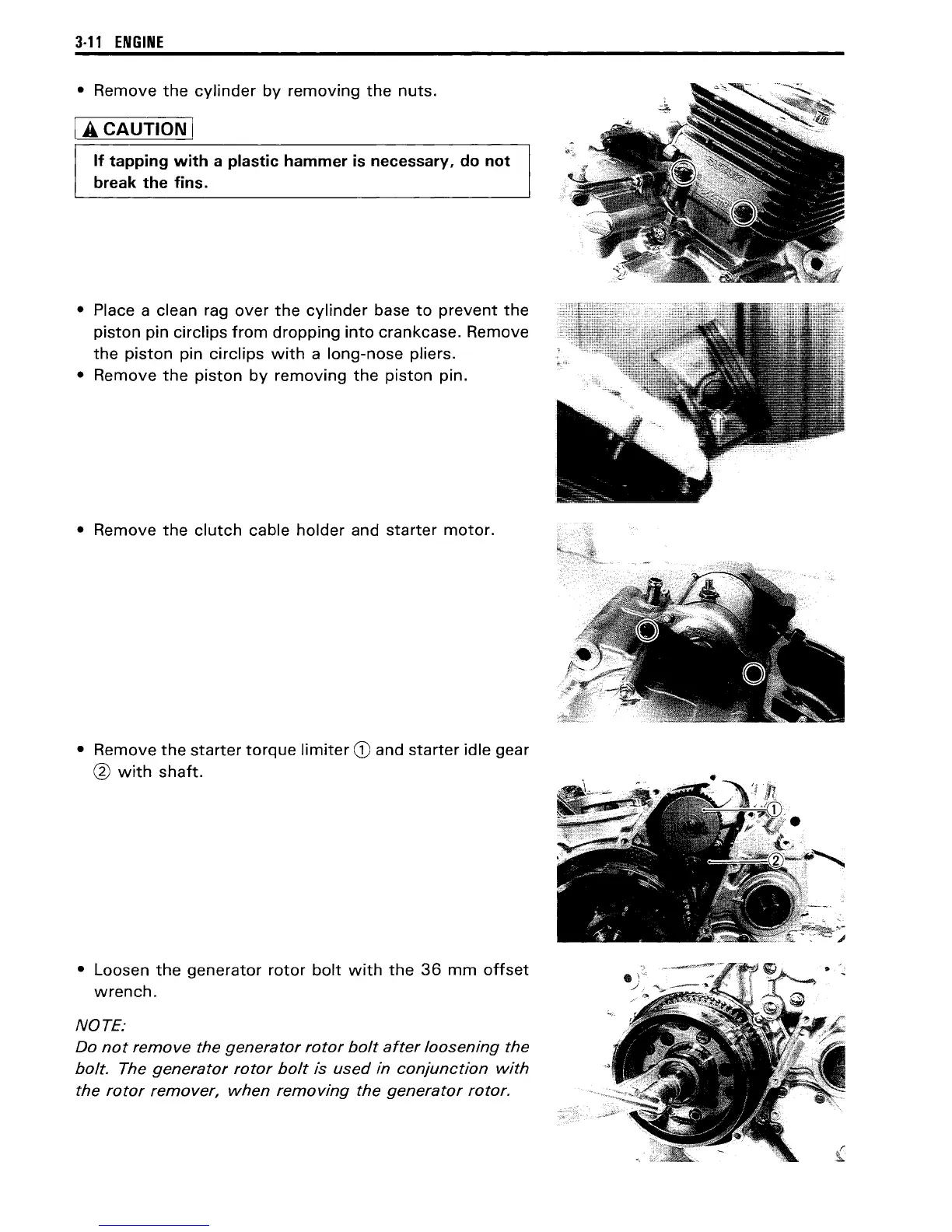

3·11 ENGINE
• Remove the cylinder by removing the nuts.
I A CAUTION I
If tapping with a plastic hammer is necessary, do not
break the fins.
• Place a clean rag over the cylinder base to prevent the
piston pin circlips from dropping into crankcase. Remove
the piston pin circlips with a long-nose pliers.
• Remove the piston by removing the piston pin.
• Remove the clutch cable holder and starter motor.
• Remove the starter torque limiter CD and starter idle gear
@ with shaft.
• Loosen the generator rotor bolt with the 36 mm offset
wrench.
NOTE:
Do not remove the generator rotor bolt after loosening the
bolt. The generator rotor bolt is used in conjunction with
the rotor remover, when removing the generator rotor.
