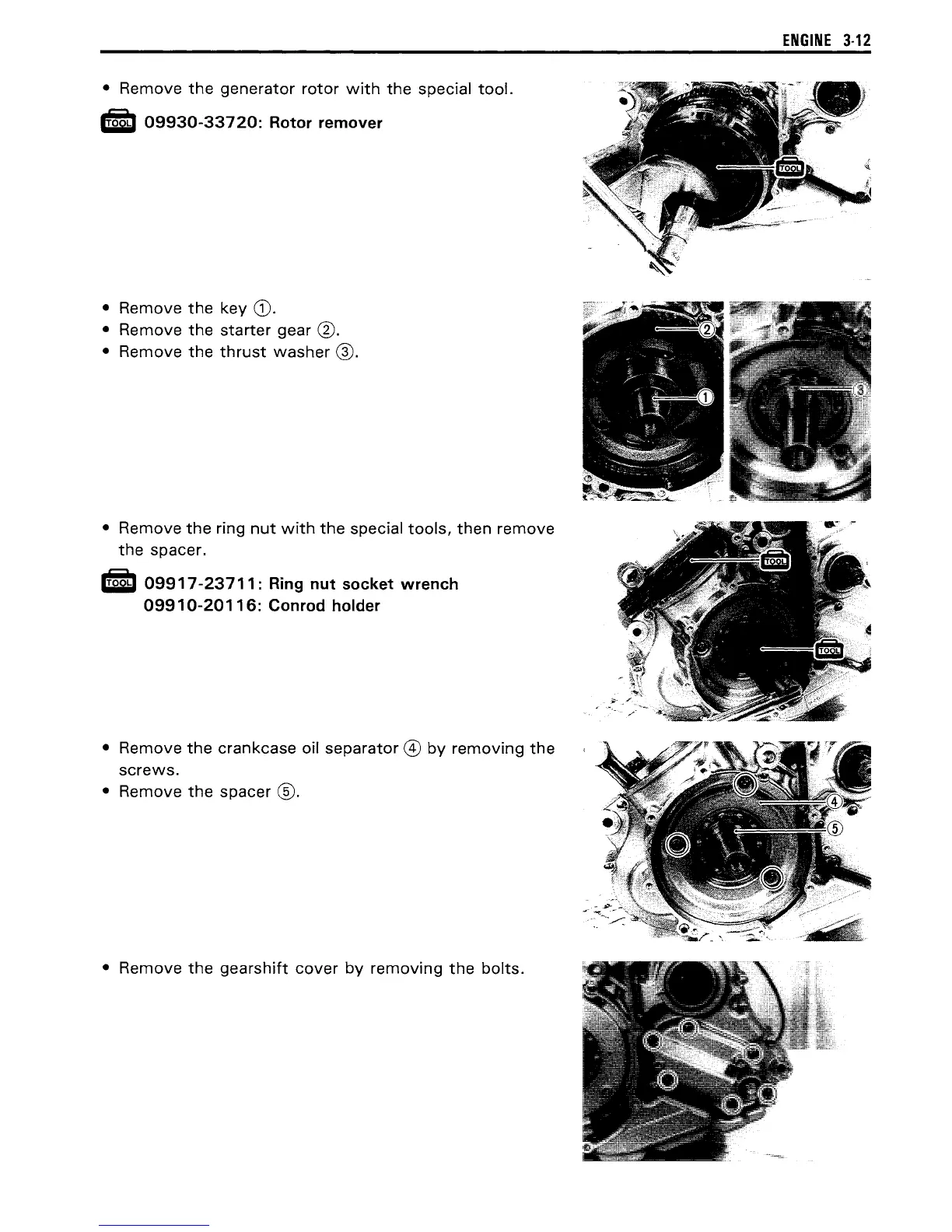

• Remove the generator rotor with the special tool.
lim 09930-33720: Rotor remover
• Remove the key CD.
• Remove the starter gear @.
• Remove the thrust washer @.
• Remove the ring nut with the special tools, then remove
the spacer.
S 09917-23711: Ring nut socket wrench
09910-20116: Conrod holder
• Remove the crankcase oil separator @ by removing the
screws.
• Remove the spacer @.
• Remove the gearshift cover by removing the bolts.
ENGINE 3·12
