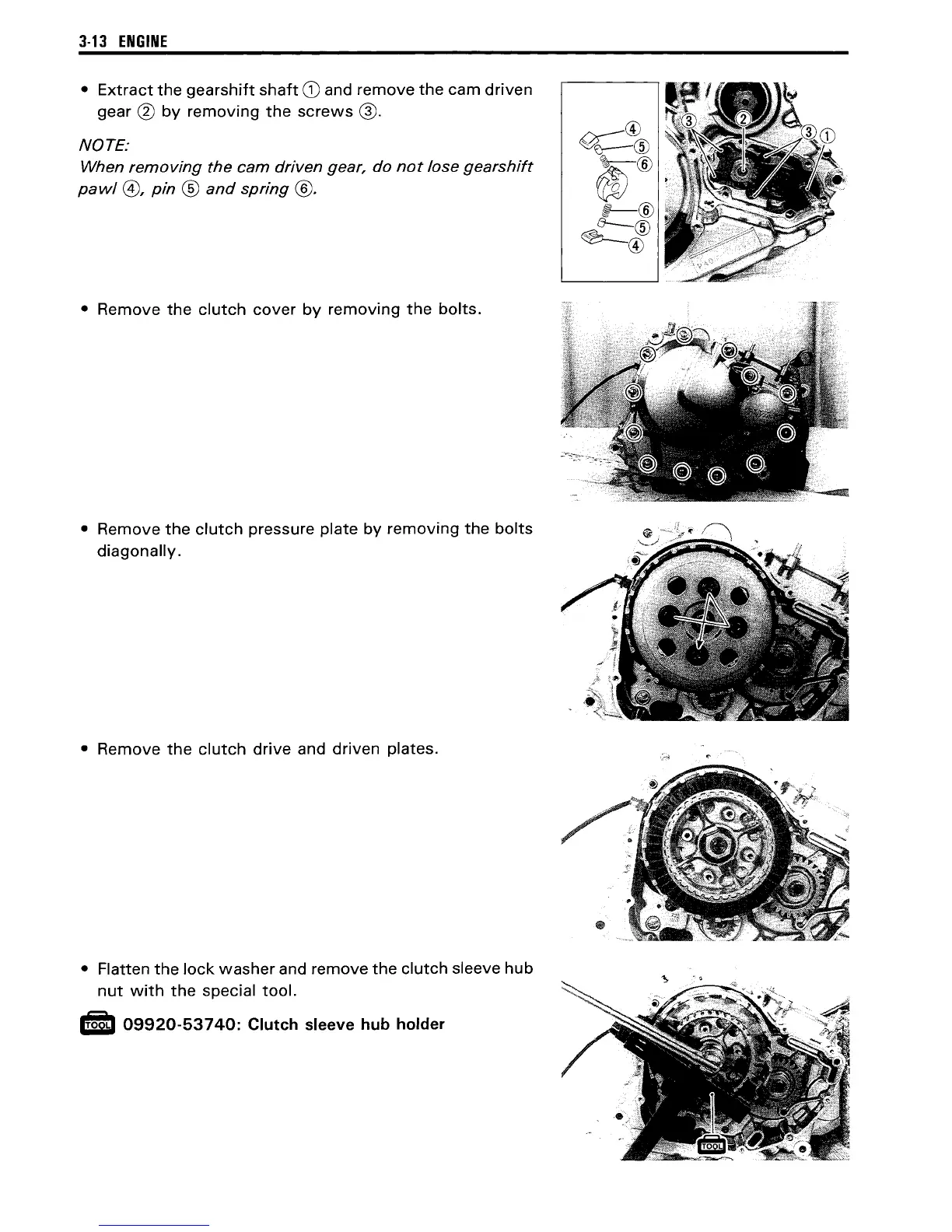

3·13 ENGINE
• Extract the gearshift shaft G) and remove the cam driven
gear @ by removing the screws @.
NOTE:
When removing the cam driven gear, do not lose gearshift
pawl@, pin ® and spring ®.
• Remove the clutch cover by removing the bolts.
• Remove the clutch pressure plate by removing the bolts
diagonally.
• Remove the clutch drive and driven plates.
• Flatten the lock washer and remove the clutch sleeve hub
nut with the special tool.
~ 09920-53740: Clutch sleeve hub holder
