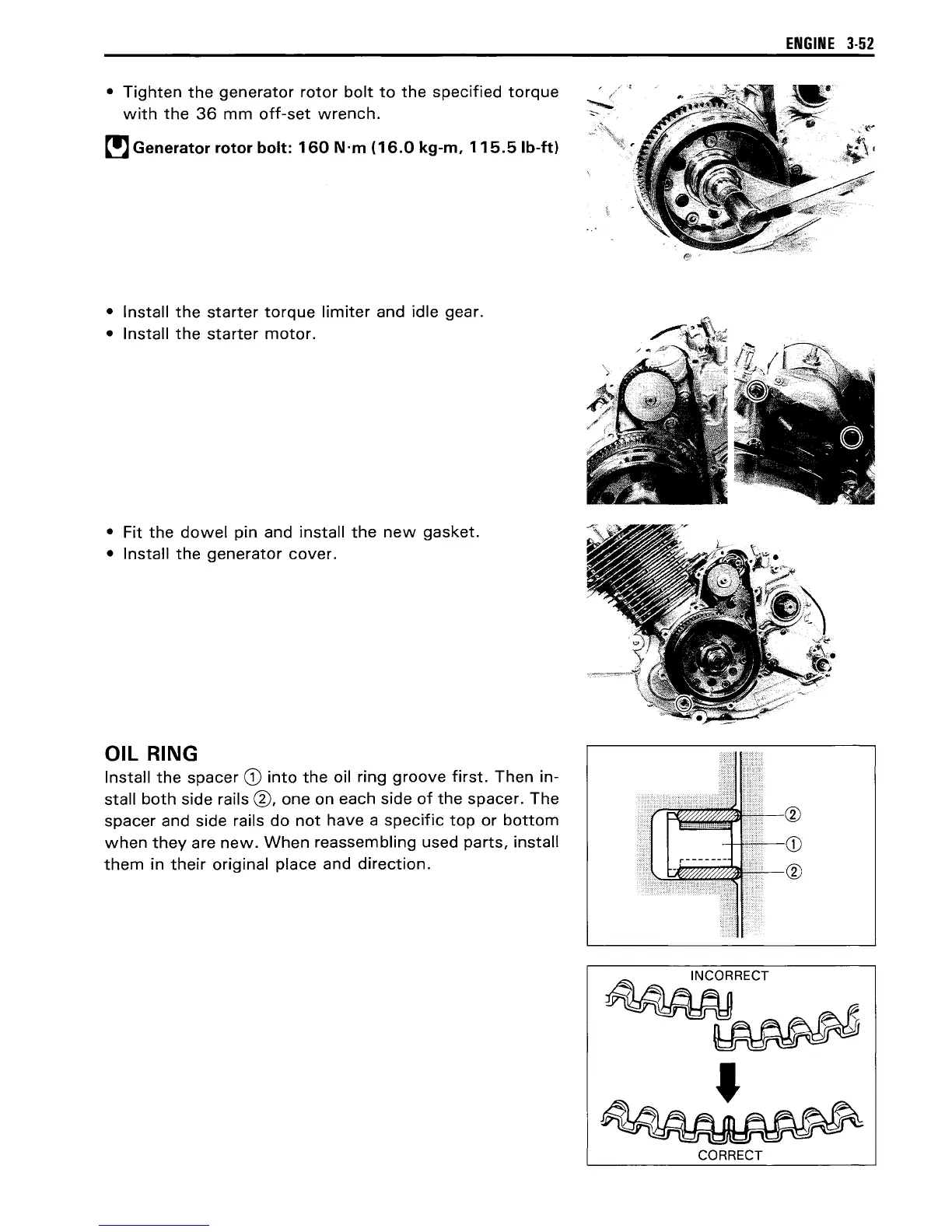

• Tighten the generator rotor bolt to the specified torque
with the 36 mm off-set wrench.
~ Generator rotor bolt: 160 N·m (16.0 kg-m, 115.5Ib-ft)
• Install the starter torque limiter and idle gear.
• Install the starter motor.
• Fit the dowel pin and install the new gasket.
• Install the generator cover.
OIL RING
Install the spacer G) into the oil ring groove first. Then in-
stall both side rails @, one on each side of the spacer. The
spacer and side rails do not have a specific top or bottom
when they are new. When reassembling used parts, install
them in their original place and direction.
ENGINE 3·52
--f-+±:"---G)
i~ •• -®
CORRECT
