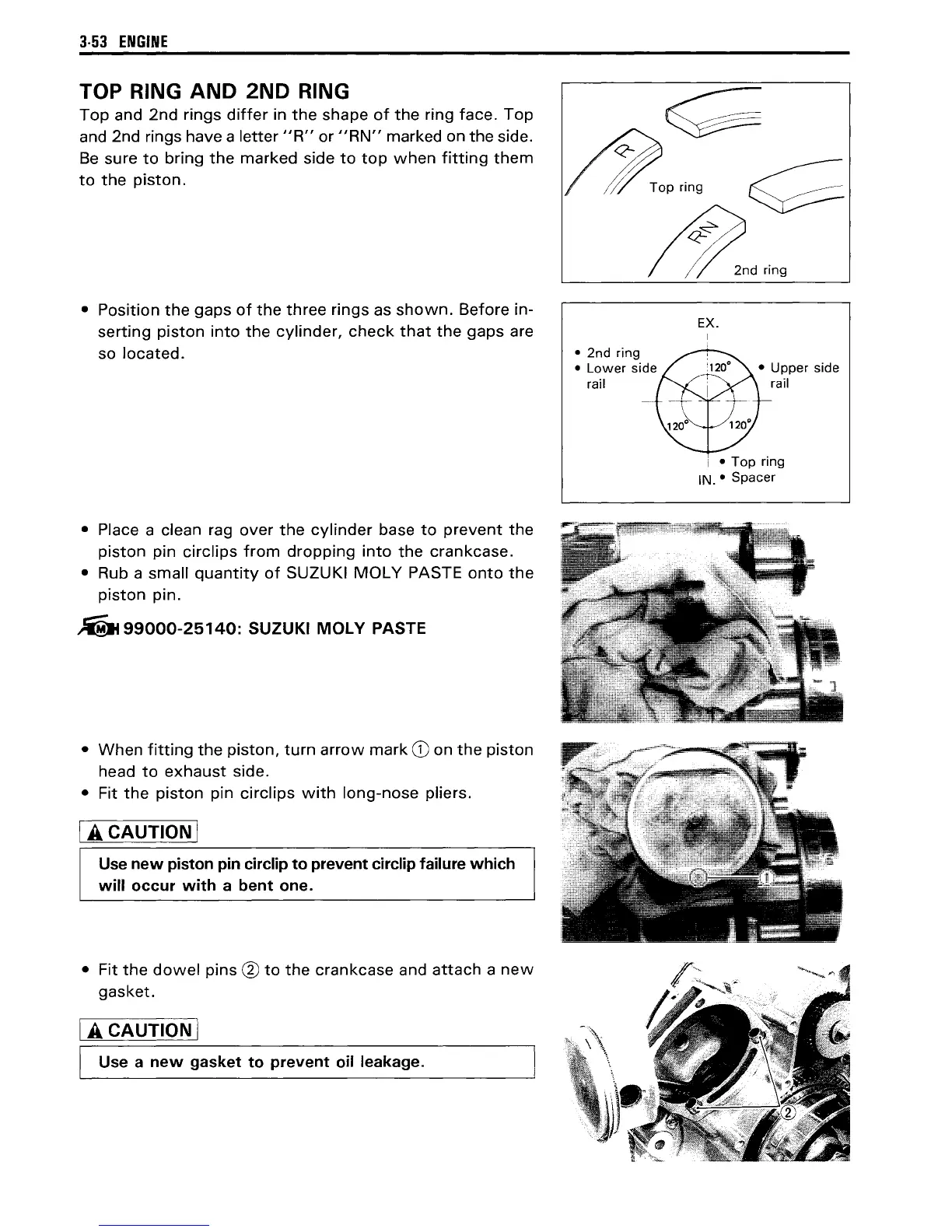

3·53 ENGINE
TOP RING AND 2ND RING
Top and 2nd rings differ in the shape of the ring face. Top
and 2nd rings have a letter "R" or "RN" marked on the side.
Be sure to bring the marked side to top when fitting them
to the piston.
• Position the gaps of the three rings as shown. Before in-
serting piston into the cylinder, check that the gaps are
so
located.
• Place a clean rag over the cylinder base to prevent the
piston pin circlips from dropping into the crankcase.
• Rub a small quantity of SUZUKI MOLY PASTE onto the
piston pin.
~99000-25140: SUZUKI MOLY PASTE
•
When fitting the piston, turn arrow mark CD on the piston
head to exhaust side.
• Fit the piston pin circlips with long-nose pliers.
I A CAUTION I
Use new piston pin circlip to prevent circlip failure which
will occur with a bent one.
• Fit the dowel pins @ to the crankcase and attach a new
gasket.
I ACAUTIONj
I Use a new gasket to prevent oil leakage.
• 2nd ring
• Lower side
rail
EX.
I
• Upper side
rail
I •
Top ring
IN. • Spacer
