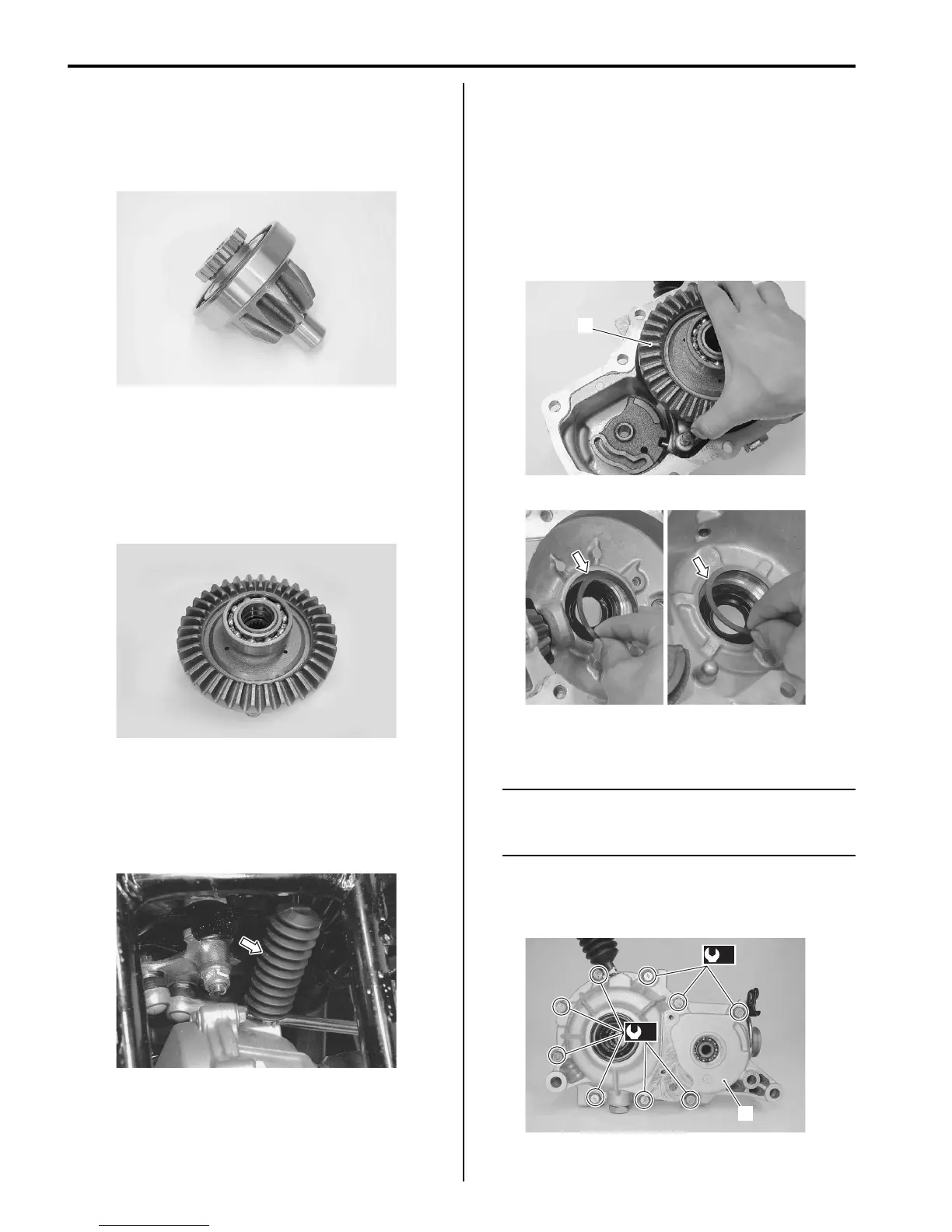

3B-14 Differential:
Pinion Gear
Inspect the pinion gear for wear or damage.
Inspect the pinion gear bearing for abnormal noise and
smooth rotation. If any defects are found, replace
defective parts.
Front Drive (Differential) Gear
Inspect the front drive (differential) gear for stick or
damage.
Inspect the front drive (differential) gear bearing for
abnormal noise and smooth rotation. If any defects are
found, replace defective parts.
Breather Rubber Case Inspection
B831G23206008
Inspect the breathe rubber case for wear or damage. If
any defects are found, replace the breather rubber case
with new one.
Front Drive (Differential) Gear Shim Inspection
and Selection
B831G23206009
Refer to “Front Drive (Differential) Assembly
Disassembly and Assembly (Page 3B-5)”.
Backlash
• Install the pinion gear, input shaft, left and right side
shim(s) and front drive (differential) gear assembly
(1).
• Install the front drive (differential) case (2) and tighten
the bolts to the specified torque diagonally.
NOTE
At this time, it is not necessary to apply a
sealant to the mating surface of the gear
case.
Tightening torque
Front drive (differential) case bolt (a): 22 N·m (2.2
kgf-m, 16.0 lb-ft)
I831G1320056-01
I831G1320057-01
I831G1320058-01
1
I831G1320059-01
I831G1320034-01
(a)
(a)
2
I831G1320060-02
To Next Page
