8. V-BELT DRIVING SYSTEM
8-1
Mechanism Diagram ··························· 8-1
Maintenance Description···················· 8-2
Trouble Diagnosis······························· 8-2
Left Crankcase Cover ························· 8-3
Drive Belt ··············································8-7
Drive Face·············································8-9
Clutch Outer/Driven Pulley··················8-12

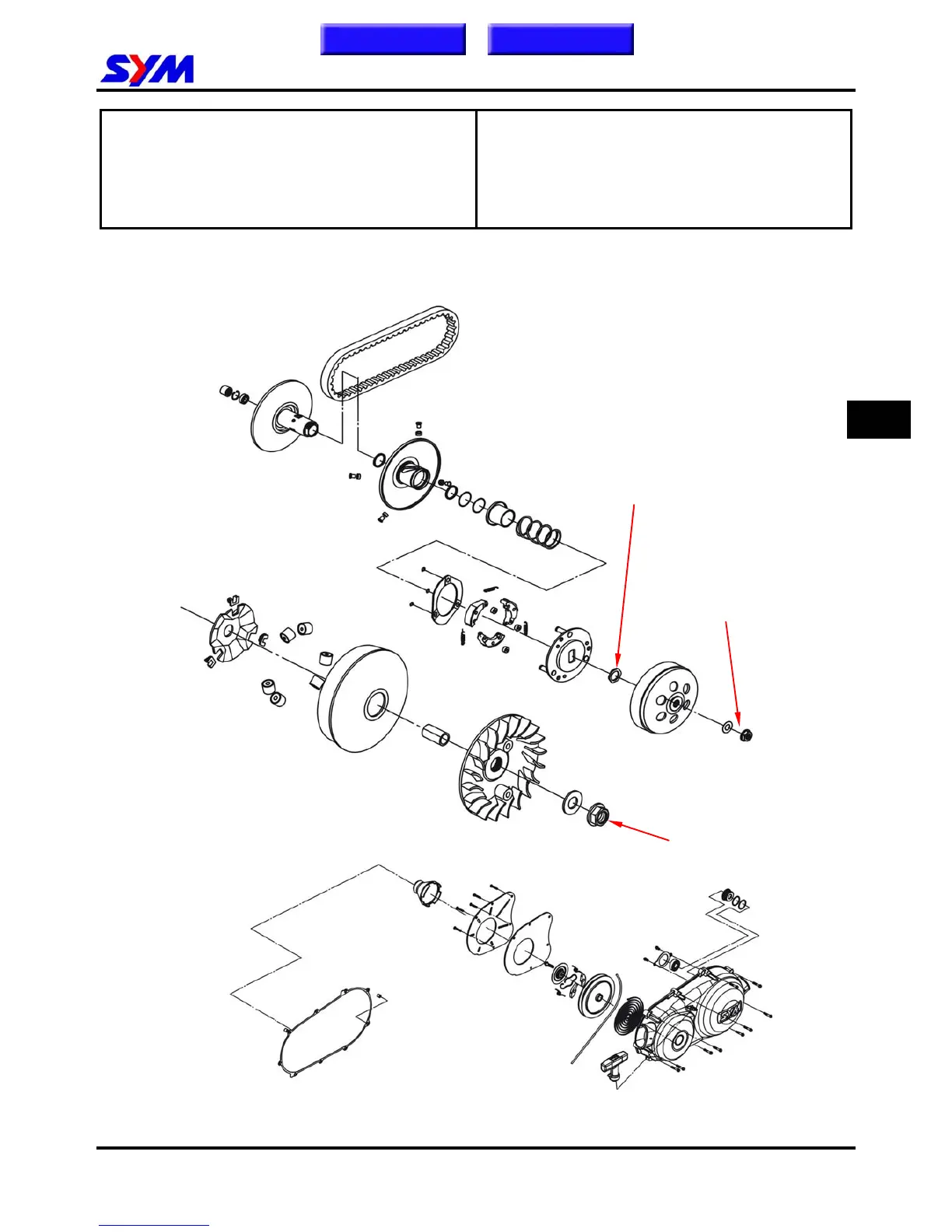

Mechanism Diagram
5.0~6.0kgf-m
Home page
Contents
8
5.0~6.0kgf-m
8.5~10.5kgf-m
