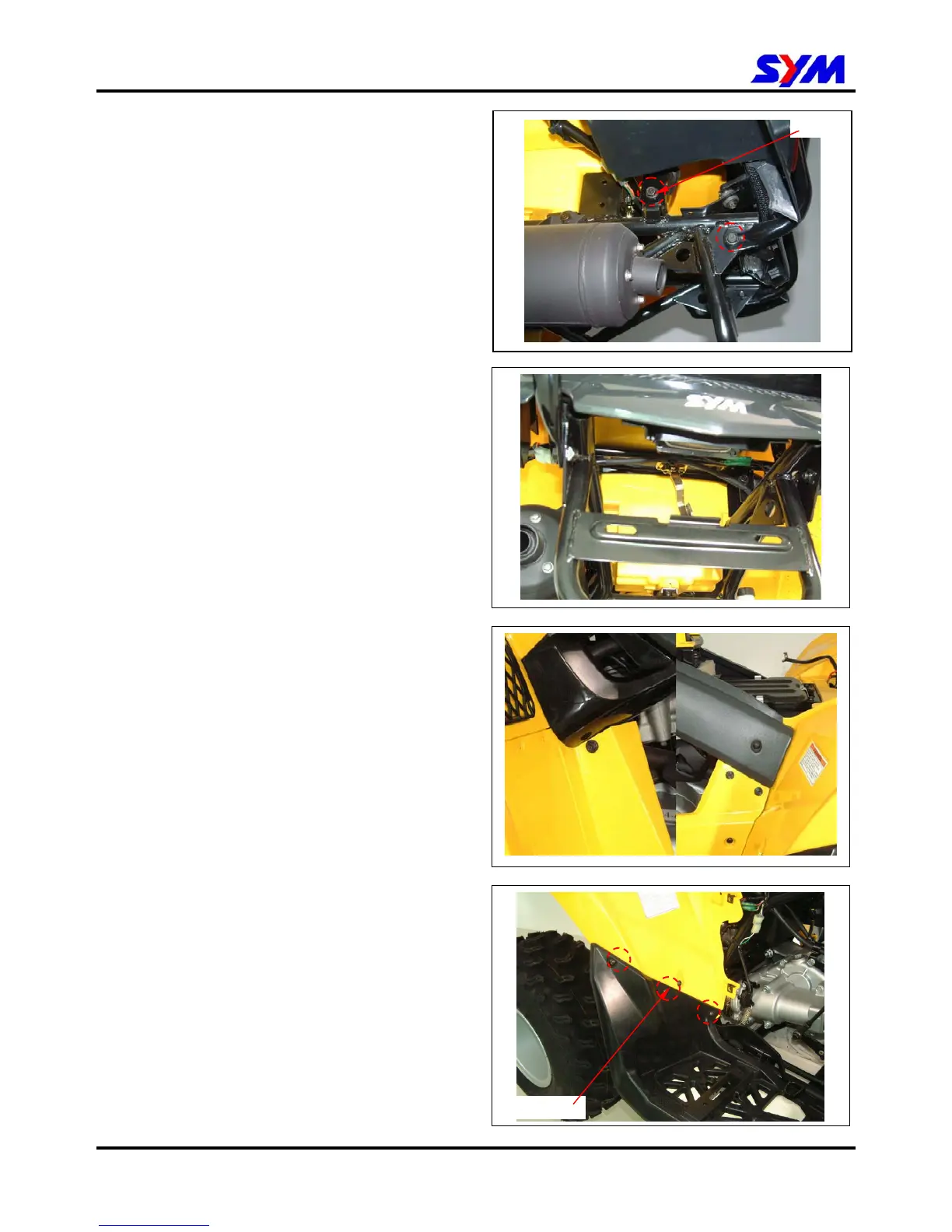

13. BODY COVER
13-10
Rear carrier
Remove
Loosen 4 bolts from the rear carrier.
Remove the rear carrier.
Installation
Install in reverse order of removal procedures.
Rear fender
Remove rear carrier.
Pull the “Seat Release Bar” up in order to remove
the seat.
This seat release bar is under the rear side of the
rear fender.
Remove 4 screws from side cover and lower side
cover them remover side cover and lower side
cover(each rear side 4 screws)
.
Remove right and left footrest screws(each rear
side 3 screws)
4 Bolts
3 screws
