15. STEERING / FRONT SUSPENSION
15-9

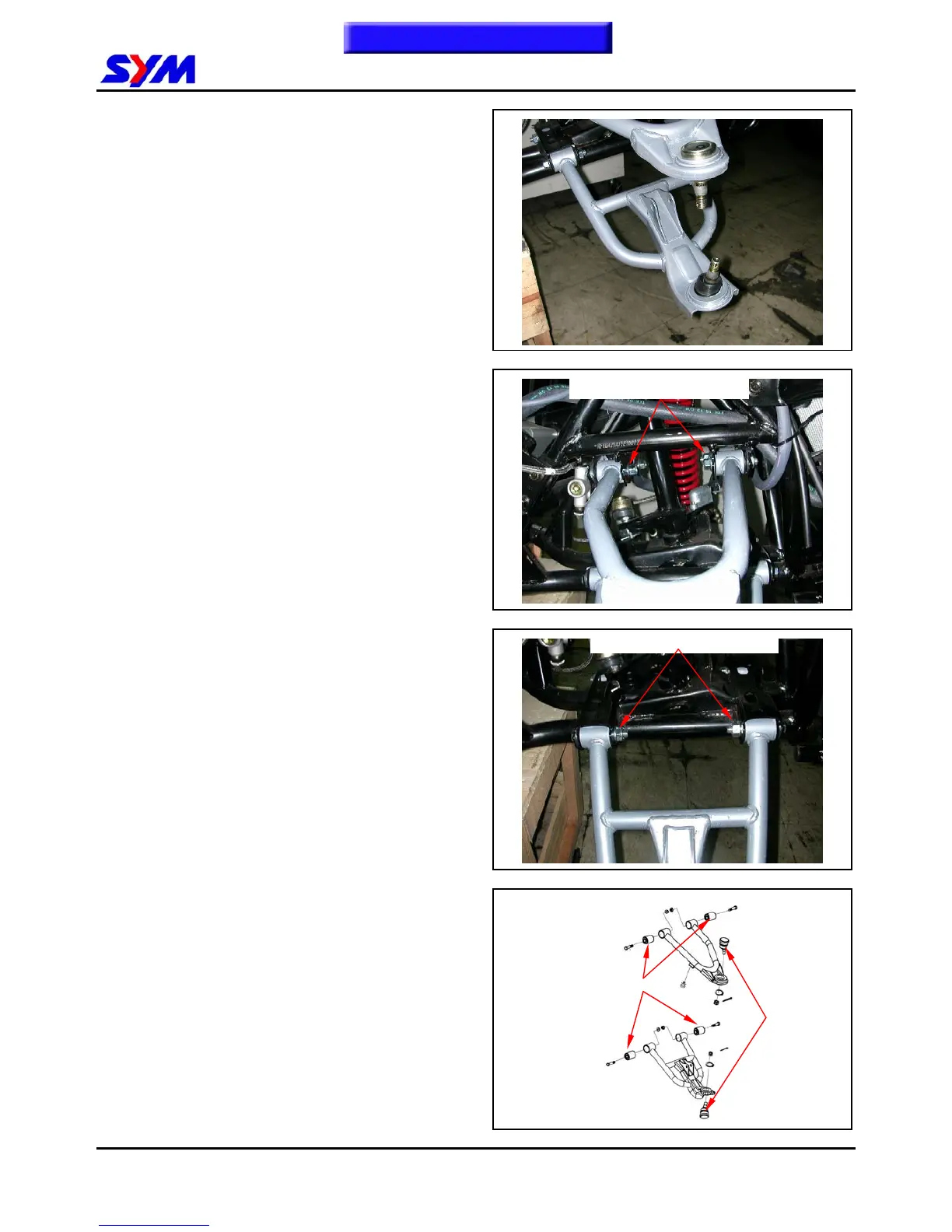

Suspension Arm
Remove
Remove front wheel, wheel hub, and brake caliper,
brake disk, tie-rod, knuckle and front cushion.
Loosen upper
suspension arm nuts, remove swing
arm bolts.
Remove upper s
uspension arm.
Loosen under s
uspension arm nuts, remove swing
arm bolts.
Remove under s
uspension arm.
Inspection
Inspect the suspension arm, ball joint and bush for
damage or bending.
Installation
Install in reverse order of removal procedures.
Torque value:
S
uspension arm nut 5.0kgf-m
Lubricate with grease into s
uspension arm.
Bush
To this chapter contents
Suspension arm nuts and bolts
Suspension arm nuts and bolts
Ball joint
Bush
