6. CYLINDER HEAD/VALVE
6-4

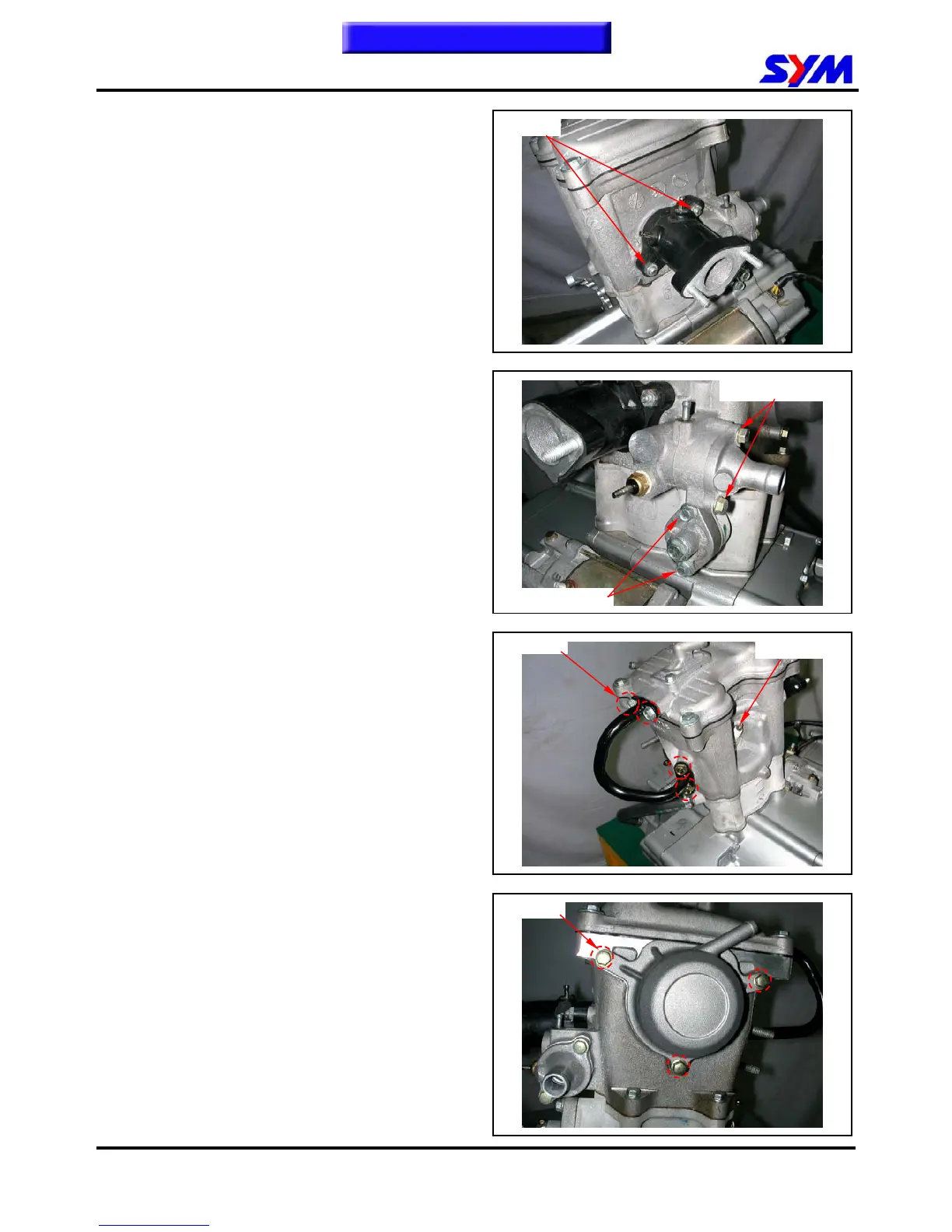

Cylinder Head Removal
Remove engine. (Refer to chapter 5)
Remove the inlet pipe (2 nuts).
Remove 1 bolt of thermostat and then remove the
thermostat.
Remove hole bolt and spring for the cam chain
tensioner.
Loosen 2 bolts, and then remove tensioner.
Remove thermostat (2 bolts).
Remove Air Injection system (AI) pipe mounting
bolts.
Remove spark plug.
Remove the side cover mounting blots of cylinder
head, and then take out the side cover.
2 nuts
4 bolts
Tensioner bolts
Thermostat bolts
3 bolts
