Sym Quad Lander 300 - Rear Wheel and Axle Service

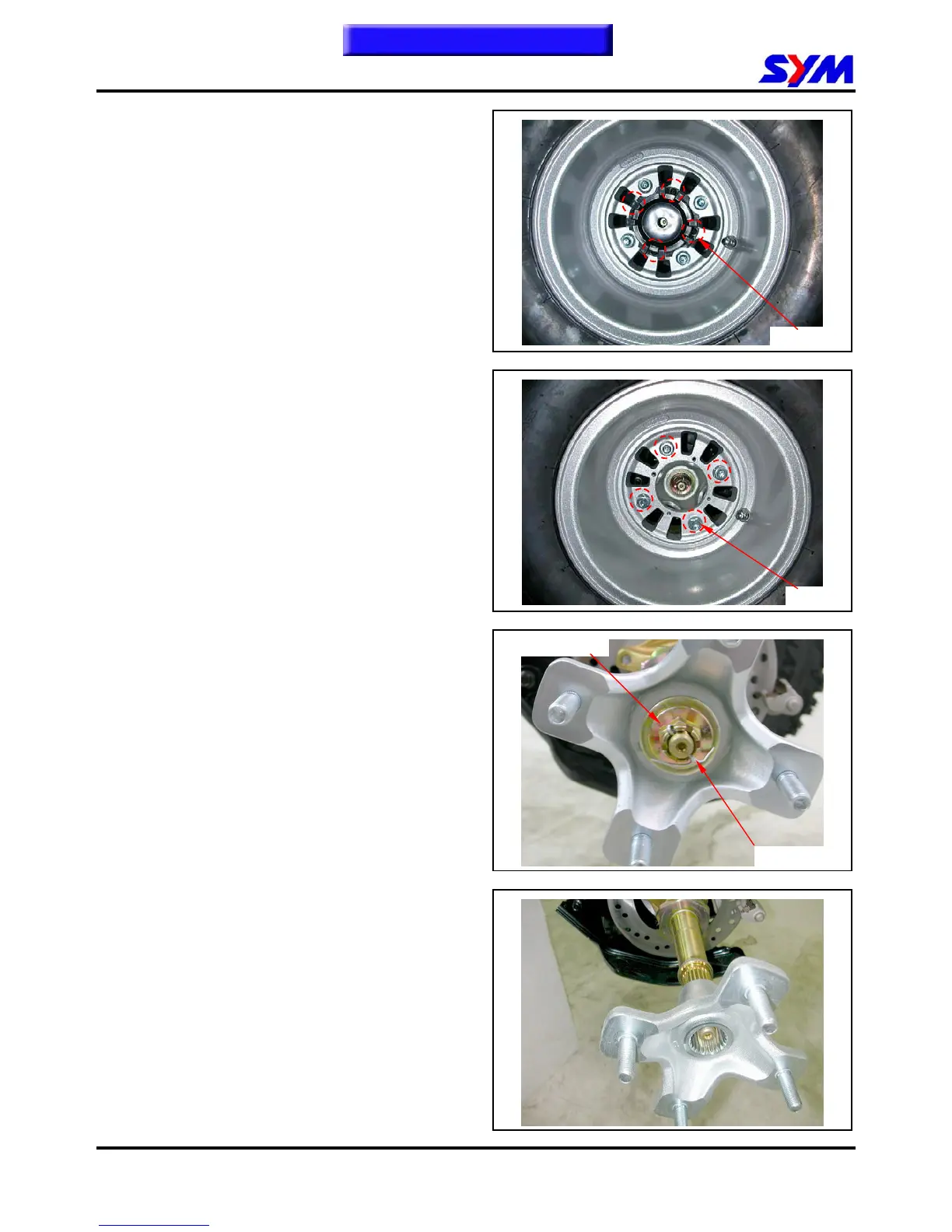

16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-4
Rear Wheel
Removal
Raise the rear wheels off the ground by placing a
jack or other support under the frame.
Remove rear axle cover (4 screws).
Remove the rear wheel nuts, and then remove
rear wheels.
Installation
Install the rear wheel and tighten the nuts.
Torque: 2.4kgf-m
Rear Wheel Axle Connecter
Removal
Remove cotter pin, rear wheel axle connecter nut
and washer.
Remove right and left rear wheel axle connecter.
Installation
Install the rear wheel shaft connecter.
Install wheel shaft connecter washer and tighten
the wheel shaft connecter nut.
Torque: 2.4kgf-m
Install cotter pin.
4 nuts
To this chapter contents
Wheel hub nut
Cotter pin
4 screws
