16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-5

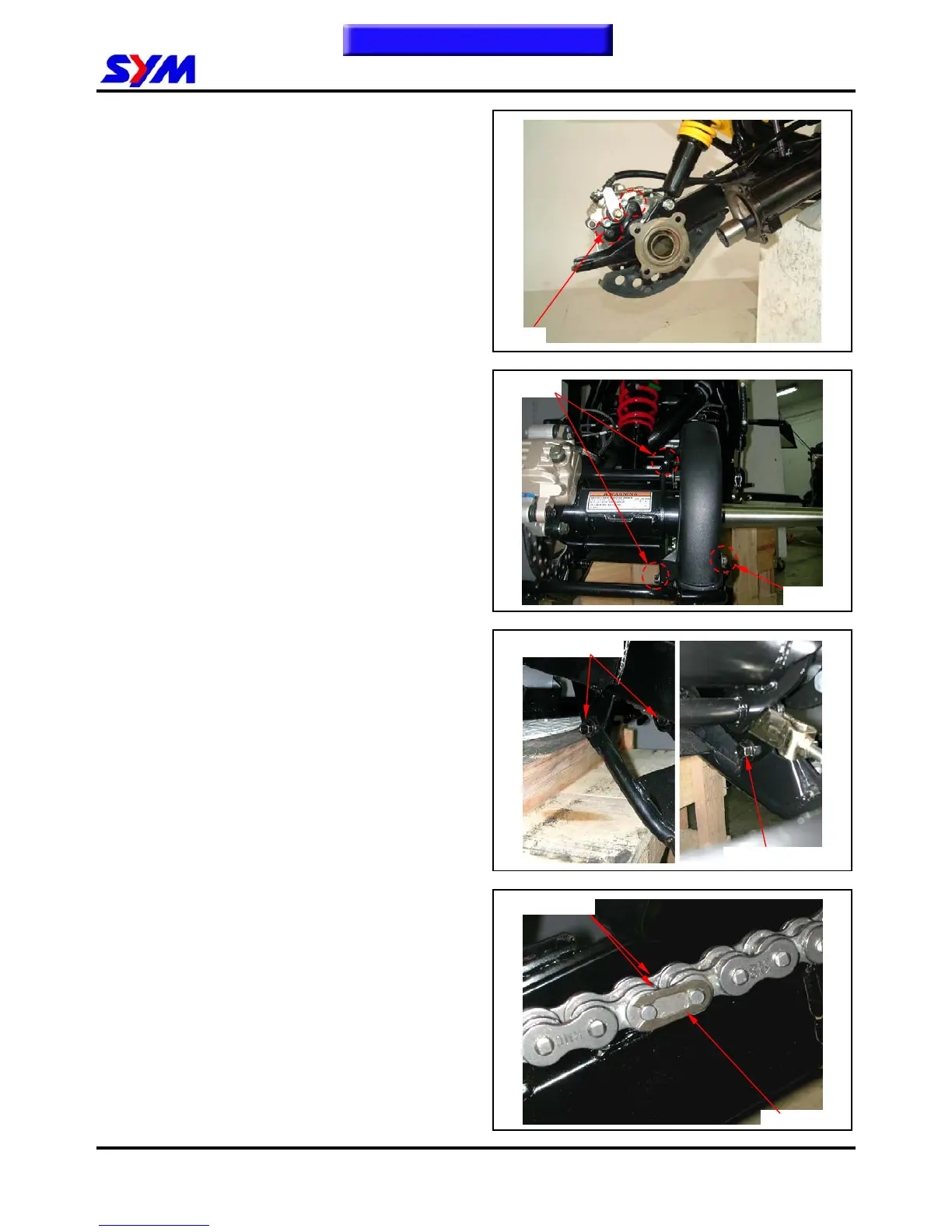

Rear Wheel Axle
Remove right and left rear wheel and axle.
Remove 8 bolts and remove the gear box .
Remove 2 bolts, and then remove rear brake
caliper.
Remove 2 bolts and 1 nut, and remove drive chain
cover.
Remove 4 bolts to remove rear under protect.
Remove drive chain lock clip, master link, and
then remove drive chain.
To this chapter contents
Lock clip
Master link
2 bolts
2 bolts
1 nut
Front side 2 bolts
Rear side 2 bolts
To Next Page
