9. FINAL DRIVING MECHANISM
9-3

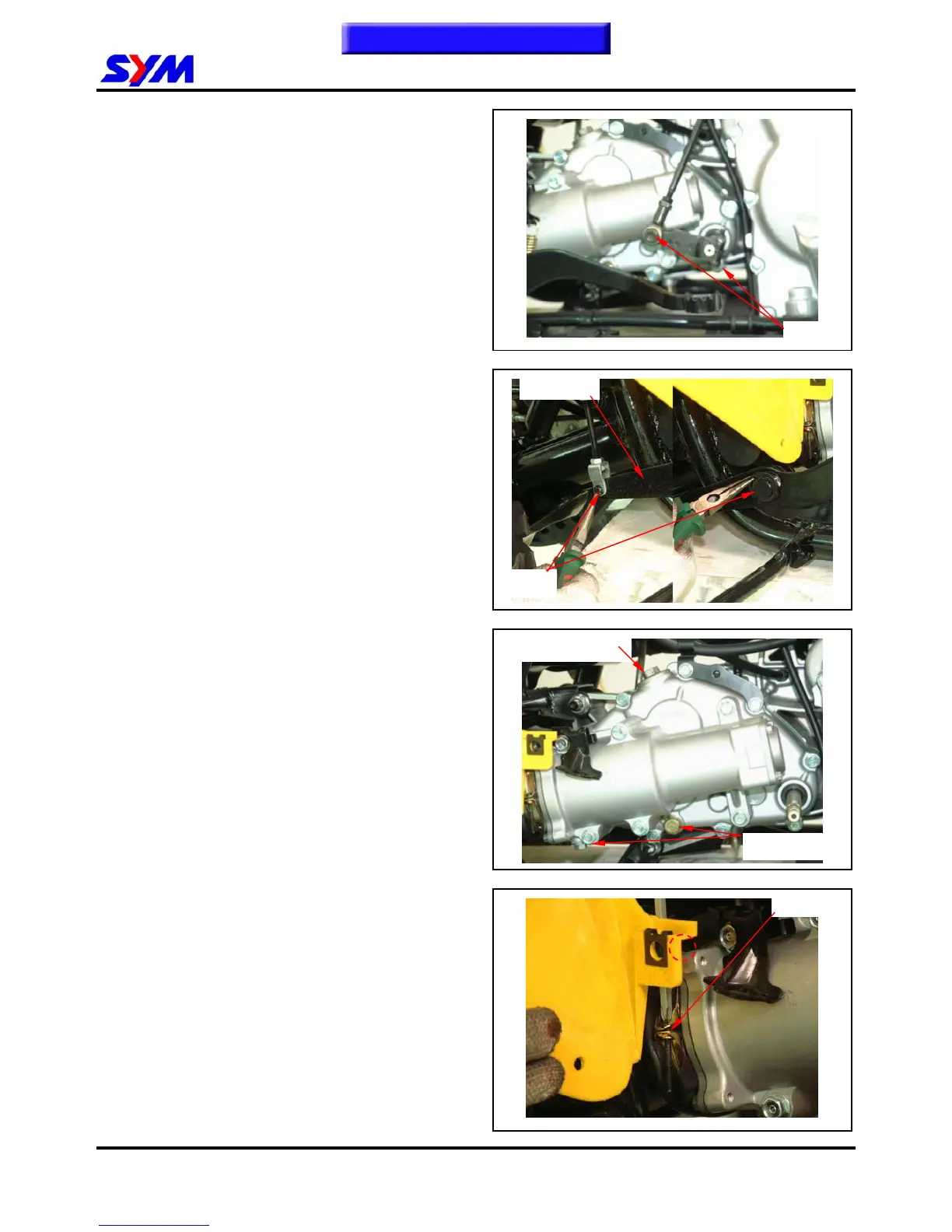

Disassembly of Transmission
Remove gear change lever (2 bolts).then remove
the gear change lever.
Remove 2 c clips from brake pedal.
Remove brake spring & stop switch spring
Remove brake penal.
Remove tappet adj hole cap and oil drain bolt
remove gear box oil fill bolt.
Make sure that no oil leaking.
Torque value:
Gear oil drain bolt 1.1~1.5kgf-m
Remove 1 screw from l cover duct band then
remove it
.
To this chapter contents
2 bolts
brake pedal
c-clip
Tappet adj hole cap
Fill bolt
oil drain bolt
