9. FINAL DRIVING MECHANISM
9-13

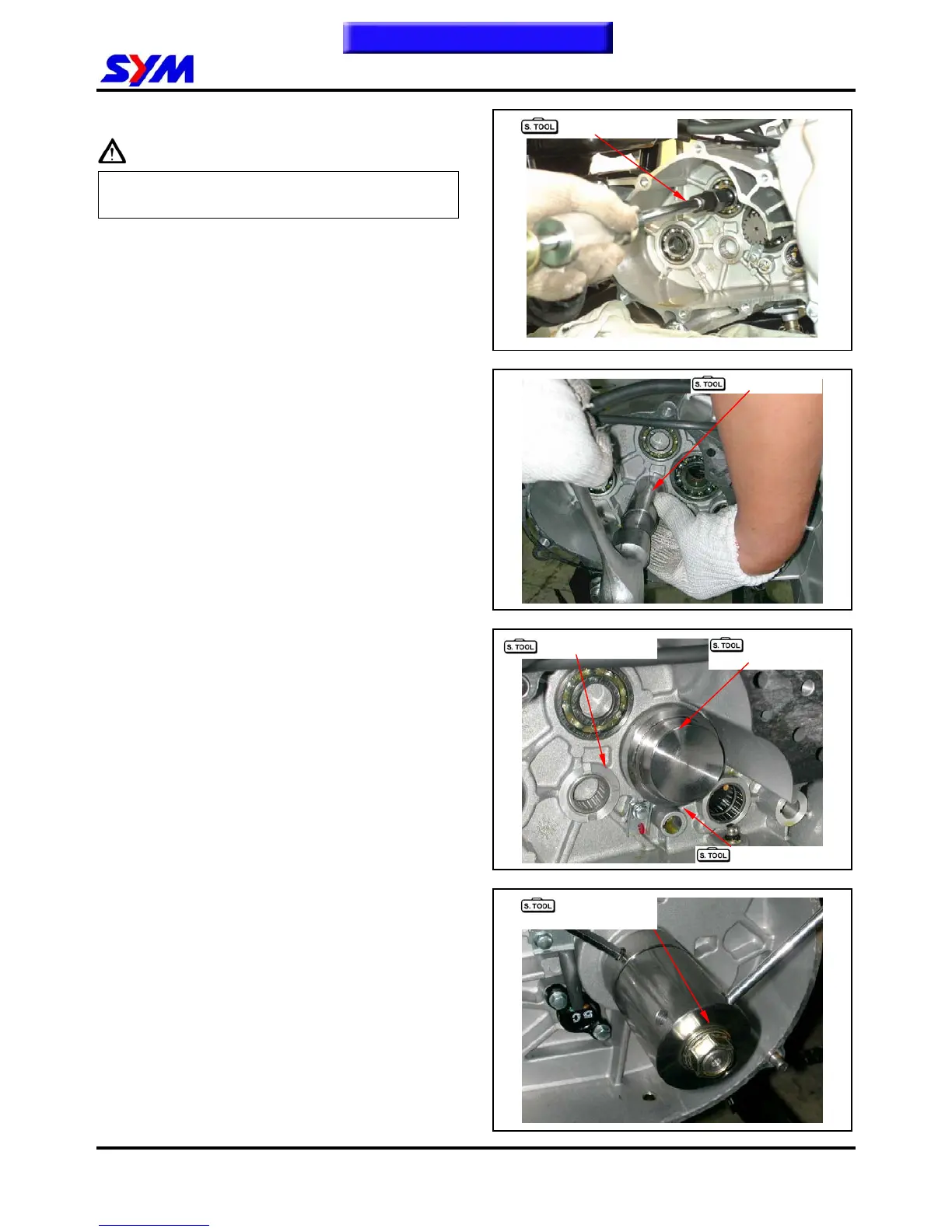

Bearing Replacement
Caution
y Never install used bearings. Once bearing
removed, it has to be replaced with new one.
Crankcase side
Remove drive shaft bearing setting plate, and then
remove drive shaft bearing from left crankcase
using following tools.
Remove reverse shaft bearing and counter shaft
bearing from left crankcase using following tools.
Remove drive shaft oil seal.
Special tool:
Tool number：SYM-6204025
Tool name：Inner bearing puller.
Install new final shaft, counter shaft and reverse
shaft bearings into left crankcase.
Special tool:
Tool number：SYM-9110400
Tool name：Bearing driver (6204)
Tool number：SYM-9100300-RB1 2016
Tool name：Needle bearing driver (HK2016)
Install new drive shaft bearings and baring driver
into left crankcase.
Tool number：SYM-9610000-RB1 6305
Tool name：Mission drive shaft bearing 6305
install bush.
Install the universal bearing puller and bearing
driver.
Turn the universal bearing puller to install drive
shaft bearing.
Special tool:
Tool number：SYM-2341110
Tool name：bearing install puller.
Bearing driver
Inner bearing puller
Drive shaft puller
Drive shaft and
seal install bush
Clutch nut wrench
