9. TRANSMISSION
9-14

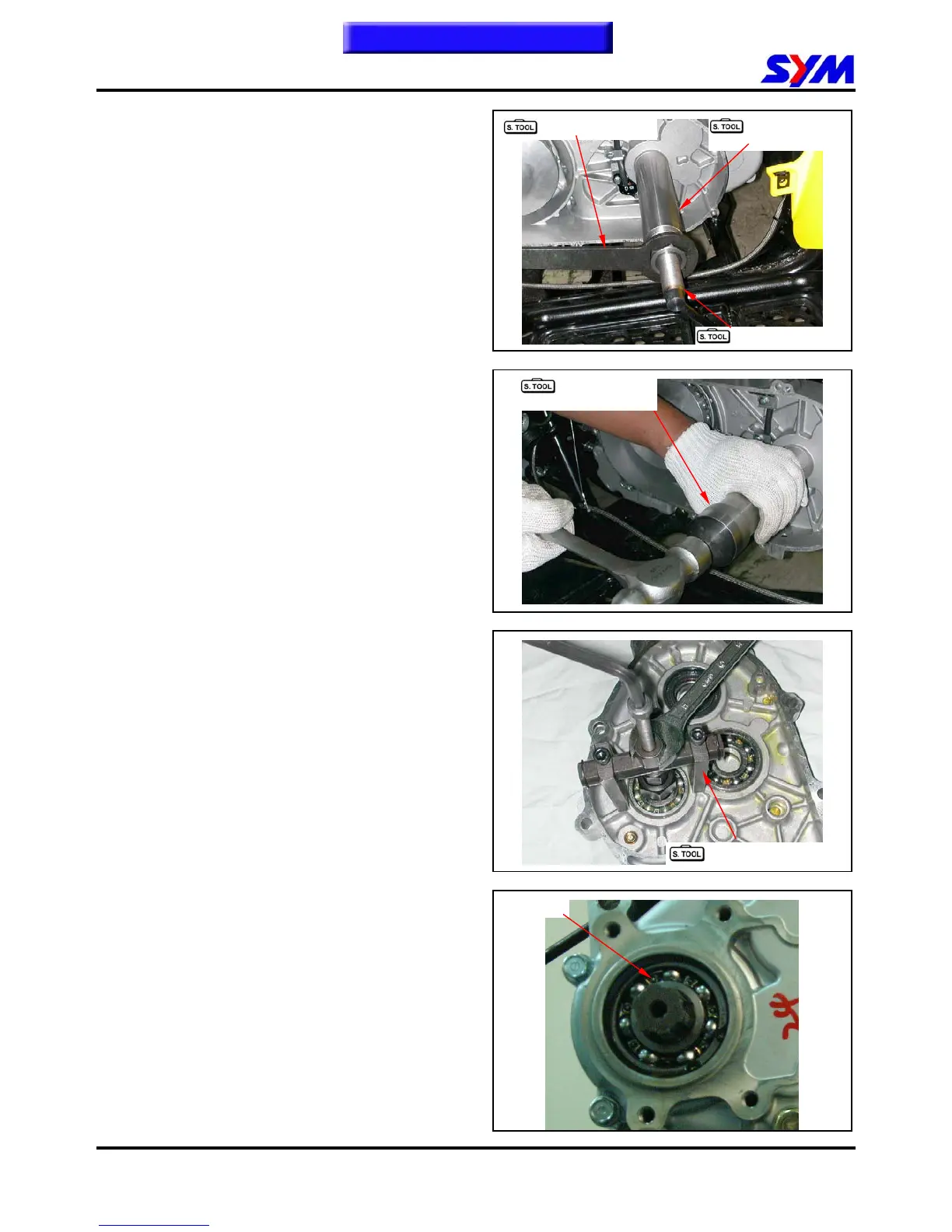

Install drive shaft.
Special tool:
Tool number：SYM-2341110-HMA
Tool name：Drive shaft puller
Tool number：SYM-9120200-HMA
Tool name：Drive shaft and oil seal install bush
Clutch nut wrench
Apply with grease onto new drive shaft oil seal lip,
and then install the oil seal.
Special tool:
Tool number：SYM-9120200-HMA
Tool name：Drive shaft and oil seal install bush
Clutch nut wrench
Install drive shaft bearing setting plate (1 bolt).
Gear box side
Use inner bearing puller to remove the final shaft
needle bearing, gear shift shaft bearing and
counter shaft bearing from the cover inner side.
Special tool:
Tool number：SYM-6204025
Tool name：Inner bearing puller
Remove cir clip of final shat out side bearing.
.
Drive shaft puller
Drive shaft and
seal install bush
Clutch nut wrench
To this chapter contents
Drive shaft and
seal install bush
Inner bearing puller
Cir clip
To Next Page
