16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-9

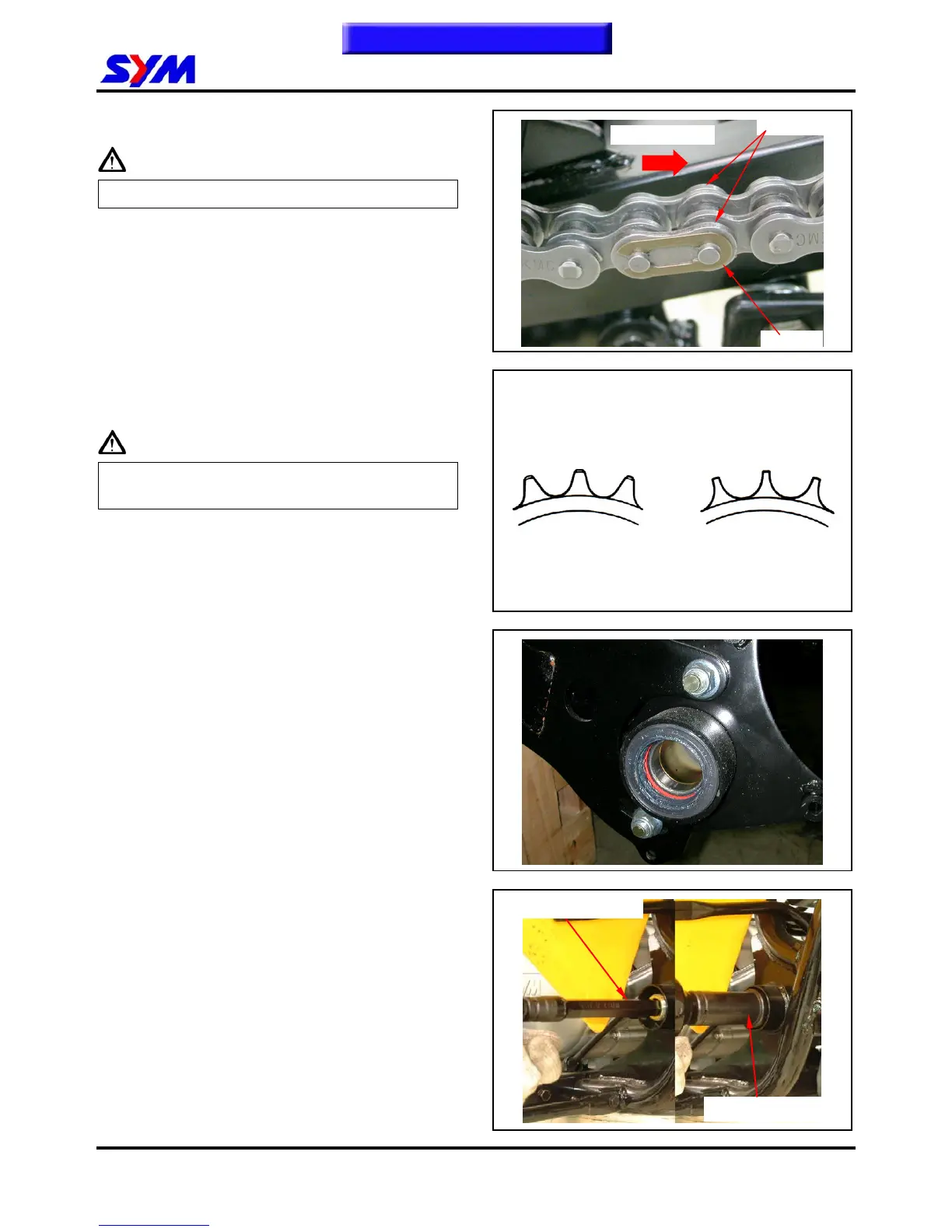

Install driven sprocket, drive chain, drive chain
cover and brake caliper.
Caution
y Note the chain lock clip direction.
Install rear wheel shaft connecter, rear wheel.
Driven sprocket inspection
Check the condition of the driven sprocket teeth.
Replace the sprocket if it worn.
Caution
y The drive chain, drive sprocket and driven
sprocket must be also inspected for wear.
Rear swing arm
Removal
Remove rear under protect, drive chain, driven
sprocket, rear brake caliper, brake disk and rear
axle.
Remove 2 nuts and bolt, and remove rear axle
holder.
Remove rear swing arm lock nut with special tool.
Remove rear swing arm pivot bolt with special
tool,.
Special tool:
Tool number：SYM-5220300-RFA
Tool name：swing arm lock nut
socket.
Tool number：SYM-5220400-RFA
Tool name：swing arm pivot bolt wrench.
To this chapter contents
{
X
Lock clip
Master link
Moving direction
pivot bolt wrench.
lock nut socket.
