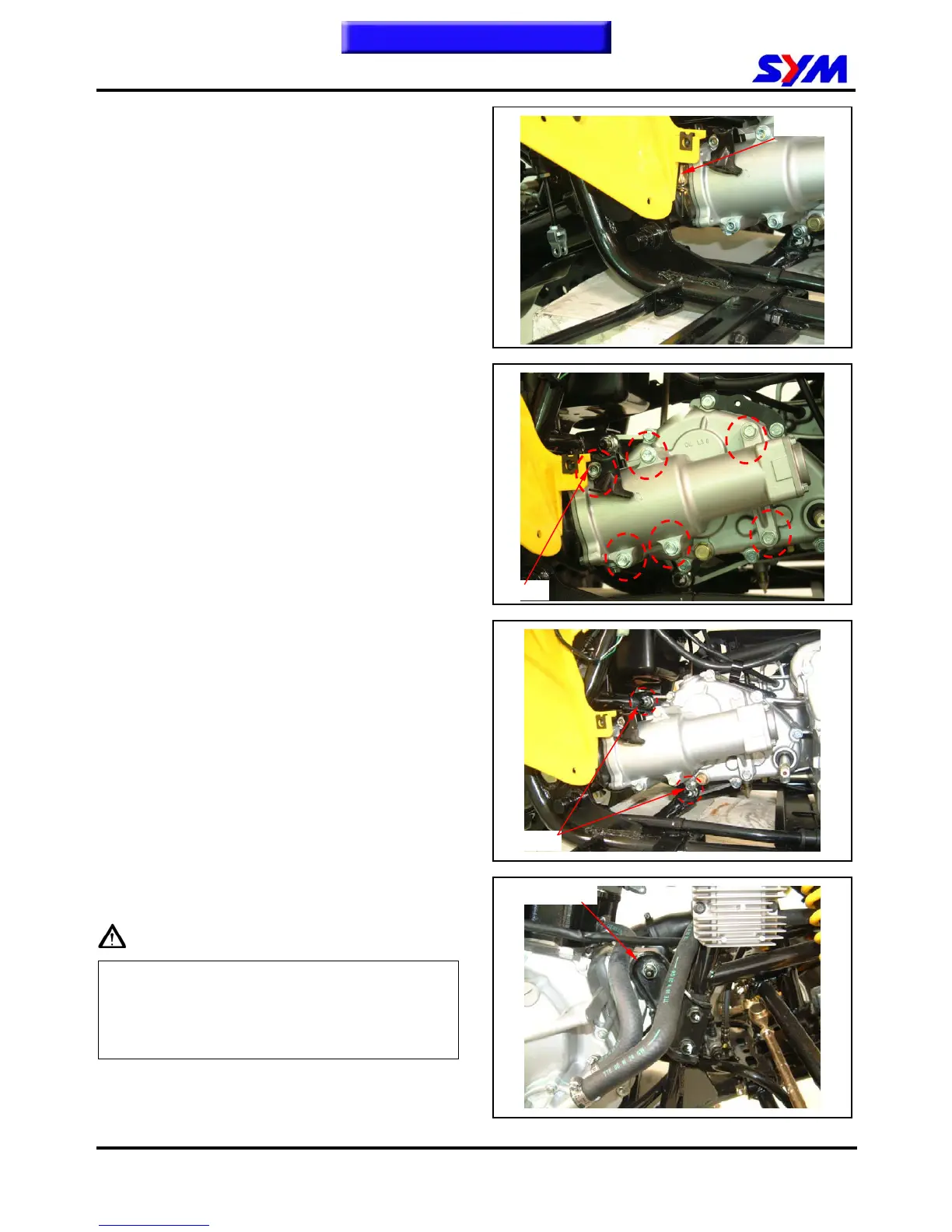

5. ENGINE REMOVAL
5-6
Remove 1 screw from duct band then remove it
Remove gear box cover bolts (6bolts) and then
remove the cover.
Remove the rear side engine hanger mounting
nuts and bolts.
Remove the front side engine hanger mounting
nut and bolt
Remove left side engine hanger, and then remove
engine by left side.
Remove left side engine hanger, and then remove
engine by left side.
Engine Installation
Check if the bush of engine hanger parts for
damage.
Install engine in the reverse procedures of
removal.
Caution
y Pay attention of foot & hand safety as engine
installation to avoid hurting.
y Do not bend or twist wires.
y Cables wires have to be routed in accordance
with normal layout.
Engine hanger Bolt:
Torque value: 7.5~9.5kgf-m
2 nuts
left side engine
To this chapter contents
duct band
6 bolts
To Next Page
