Sym Quad Lander 300 - Vacuum Chamber; Float Chamber

4. FUEL SYSTEM
4-7
Vacuum Chamber

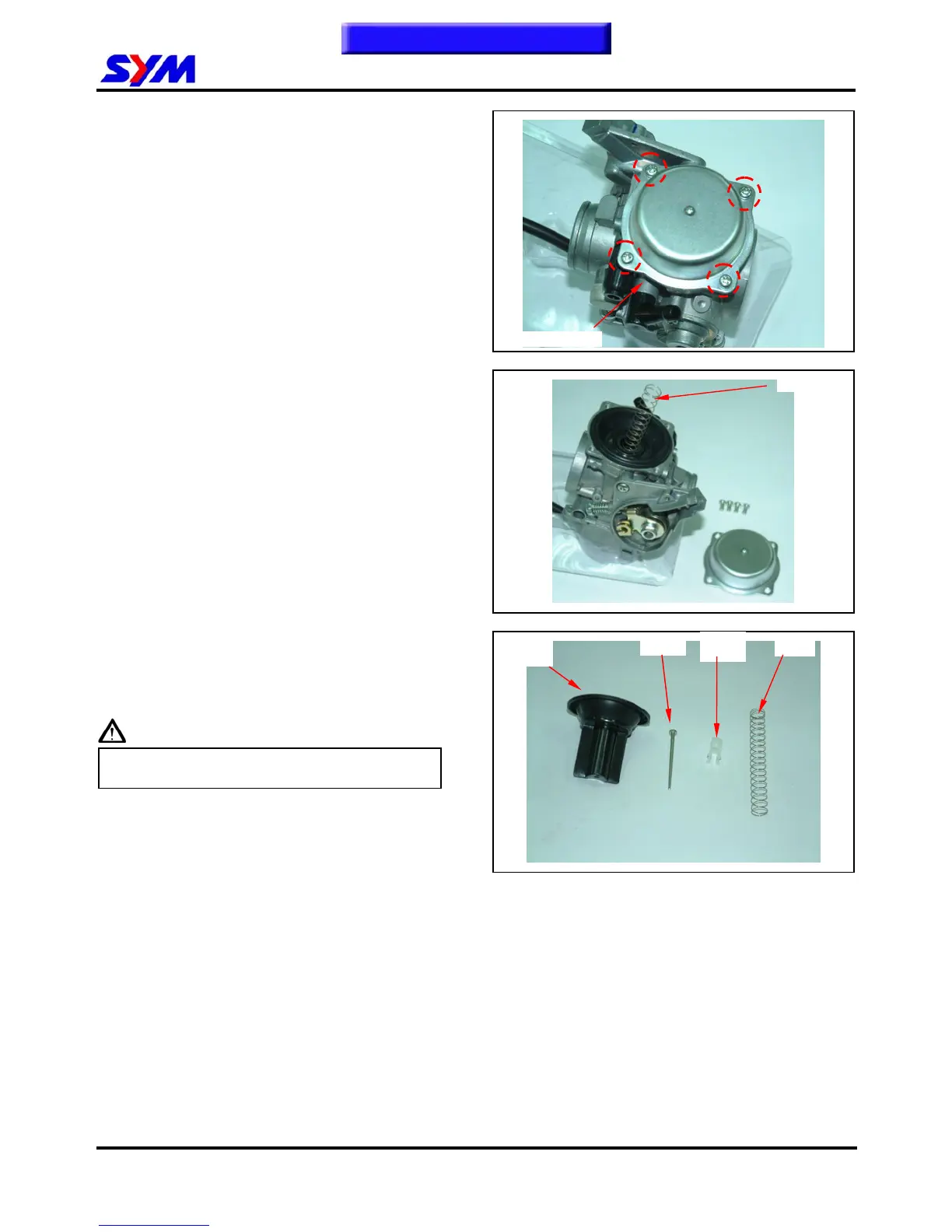

Disassembly
Removal
Loosen drain screw, and drain out residual fuel in
float chamber.
Remove screws (4 screws) of vacuum chamber
cover and the cover.
Remove compress spring and vacuum piston.
.
Remove fuel needle seat, spring, and injector
needle.
Check if the vacuum piston for wear out, crack or
other damage.
Check if the diaphragm for damage or crack.
Cautions
To this chapter contents
Throttle valve
Spring
Do not damage vacuum diaphragm.
needle
seat
needle
Spring
vacuum
piston
