9. FINAL DRIVING MECHANISM
9-11

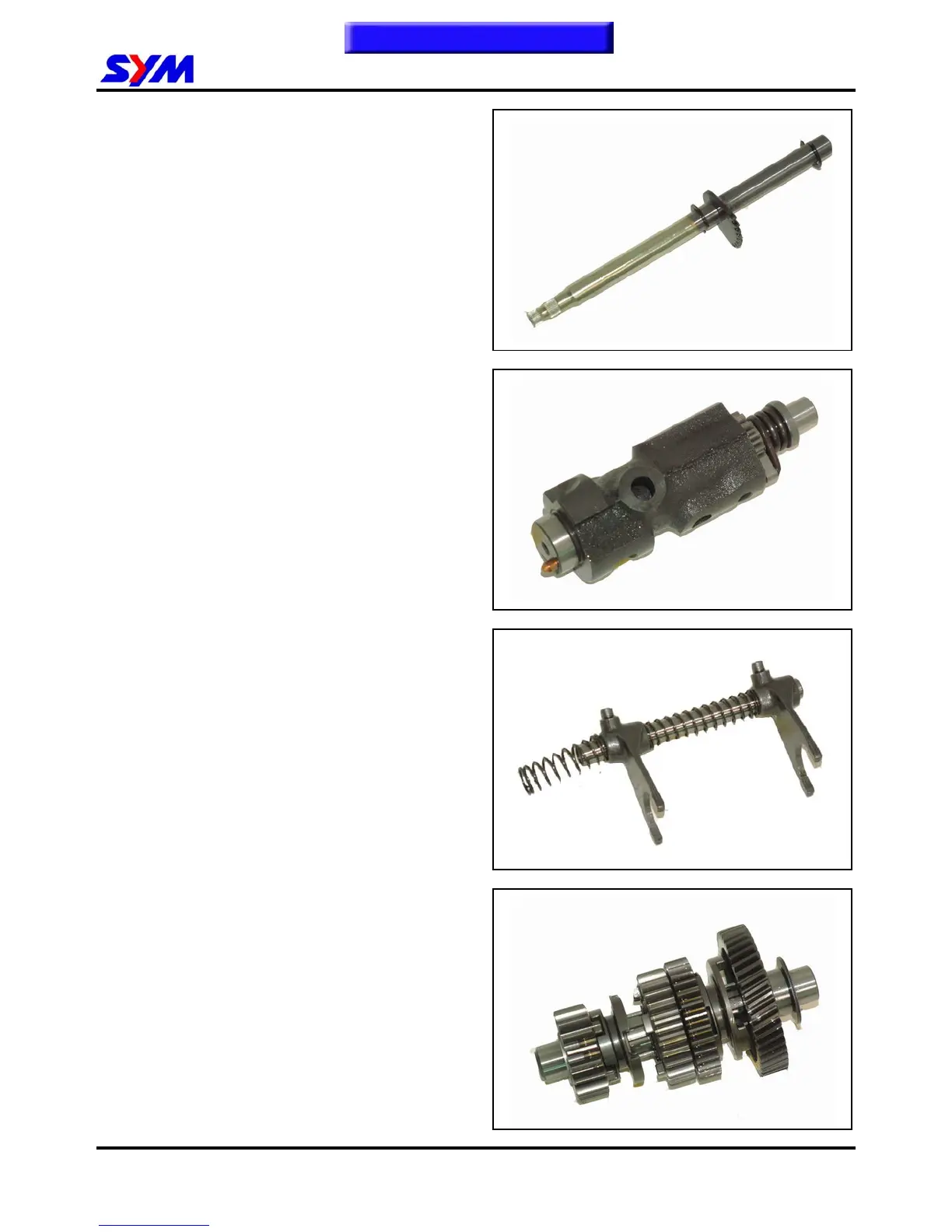

Inspection of Mission Mechanism
Check if the shift spindle is wear or damage.
Check if the shift drum is wear or damage.
Check if the shift fork and shaft is wear or damage.
Measure the outer diameter of shift fork shaft, and
replace it if it exceed service limit.
Service limit: 11.970 mm
Measure the inner diameter of shift fork, and
replace it if it exceed service limit.
Service limit: 12.010 mm
Measure the claw thickness of shift fork, and
replace it if it exceed service limit.
Service limit: 5.730 mm
Check if the counter shaft is wear or damage.
