4. FUEL SYSTEM
4-11

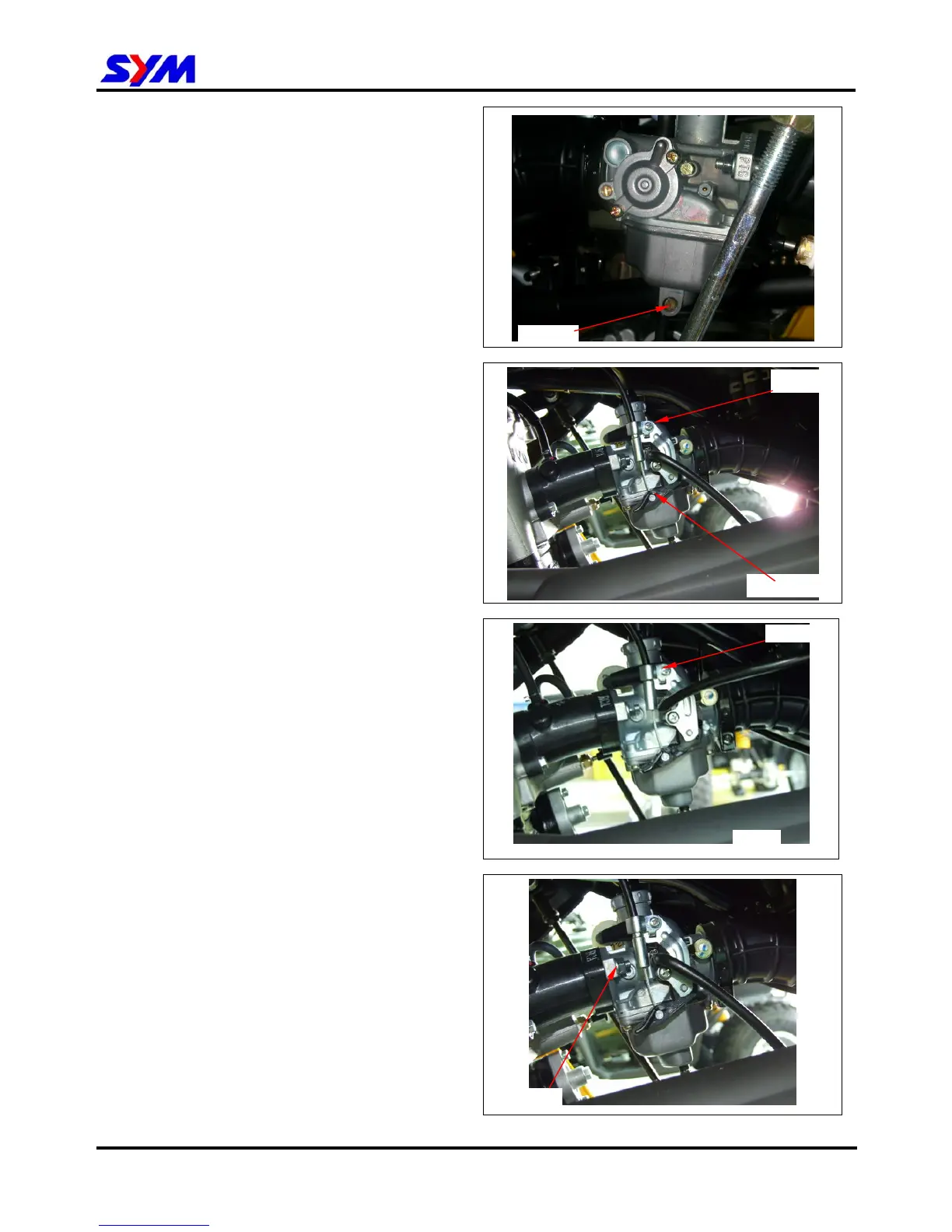

Carburetor Remove / Install(for
UA30A-A&UA30A1-6)
Removal
Drain out fuel in the float chamber.
Loosen the choke cable fixed iron sheet screw
from plate.
Remove the choke cable.
Disconnect the fuel hose.
Release the clamp strip of air cleaner.
Remove the carburetor upper parts from the
carburetor.
Release the 2 nuts of carburetor insulator, and
then remove the carburetor.
Installation
Install in reverse order of removal procedures.
Drain bolt
1 screw
Choke cable
Fuel pipe
Clamp
2 nuts
To Next Page
