15. STEERING / FRONT SUSPENSION
15-7

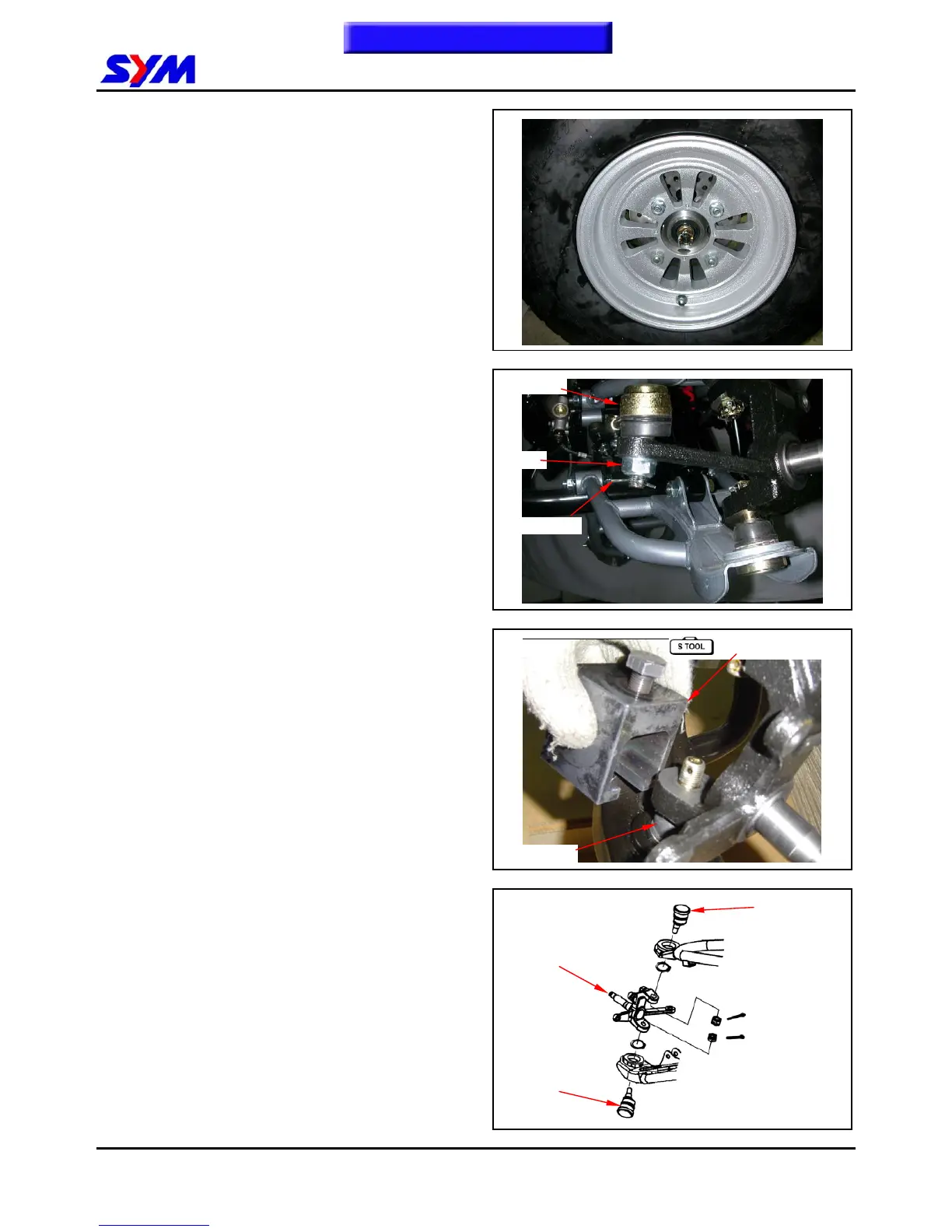

Knuckle
Remove
Remove front wheel, front brake caliper, front
wheel hub and brake disk.
Remove cotter pin and tie-rod nut, remove tie rod.
Remove cotter pin and ball joint nut.
Remove upper and under ball joints by ball joint
driver.
Remove the knuckle.
Special Tool：ball joint driver
Inspection
Inspect the upper and under ball joints and
knuckle for damaging or cracking.
Installation
Install in reverse order of removal procedures.
Torque value:
Steering tie-rod nut 5.0kgf-m
Ball joint nut 5.0kgf-m
After tightened the nuts, install the cotter pins.
To this chapter contents
Nut
Tie-rod
Cotter pin
Ball joint
Ball joint
Ball joint
Universal holder
Knuckle
