9. FINAL DRIVING MECHANISM
9-15

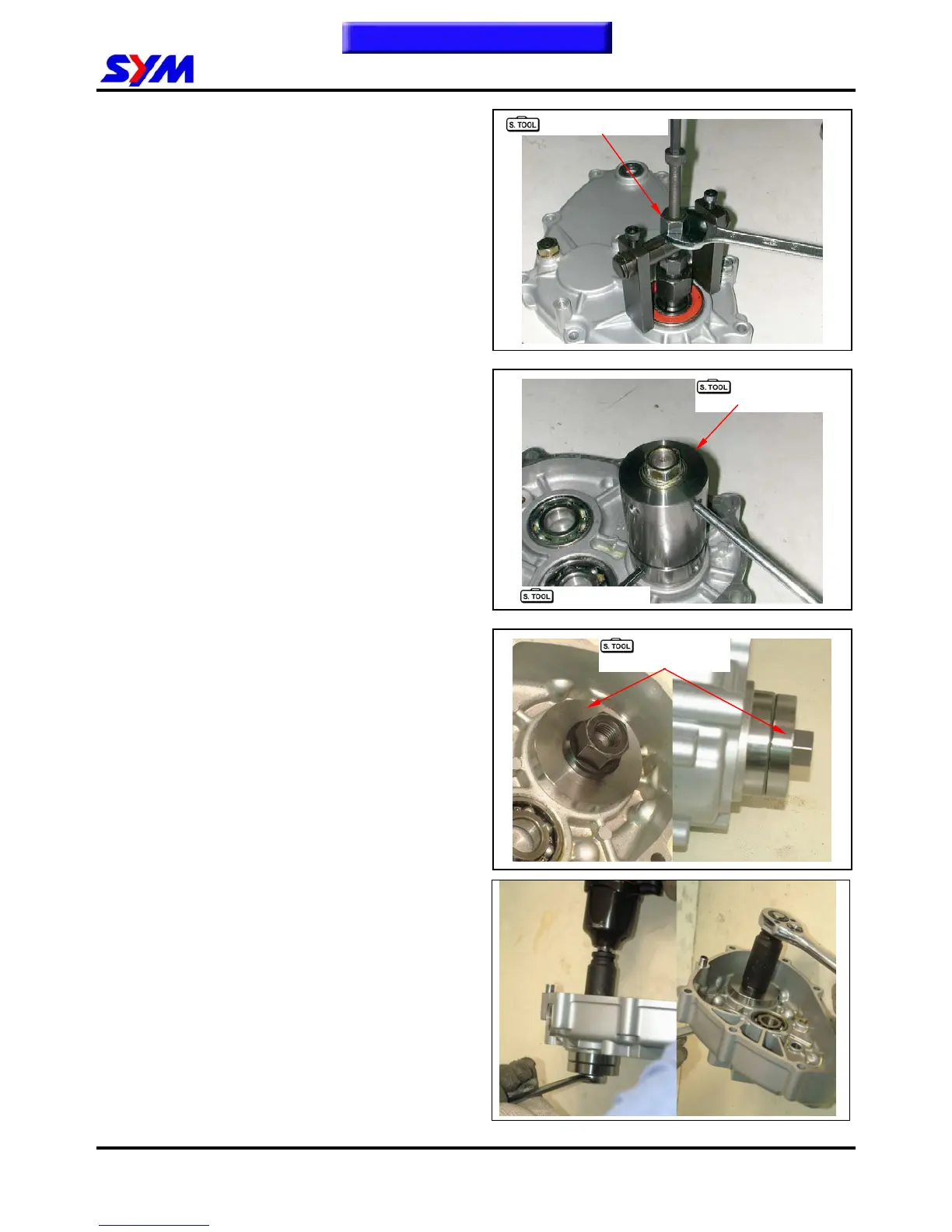

Remove final shat out side bearing.
Special tool:
Tool number：SYM-6204025
Tool name：Inner bearing puller
Remove oil seal from gear box cover and discard
the seal
Install new bearing and bearing driver into gear
box cover outer side.
Install the universal bearing puller and bearing
driver.
Turn the universal bearing puller to install drive
shaft bearing.
Special tool:
Tool number：SYM-9120200-RFA 6305
Tool name：Universal bearing puller
Install new final shaft bearings and baring driver
into left crankcase with air tools.
Tool number：SYM-9100420-RB1 RFA A6305
Tool name：Mission final shaft bearing 6305
install bush with air.
Install the air bearing puller and bearing driver.
Turn the air bearing puller with air wrench or
ratchet tool.
Special tool:
Tool number：SYM-9100420-RB1 RFA A6305
Tool name：Mission final shaft bearing 6305
install bush with air.
To this chapter contents
Inner bearing puller
Bearing driver
Universal
bearing puller
AIR bearing
puller
