9. TRANSMISSION
9-4

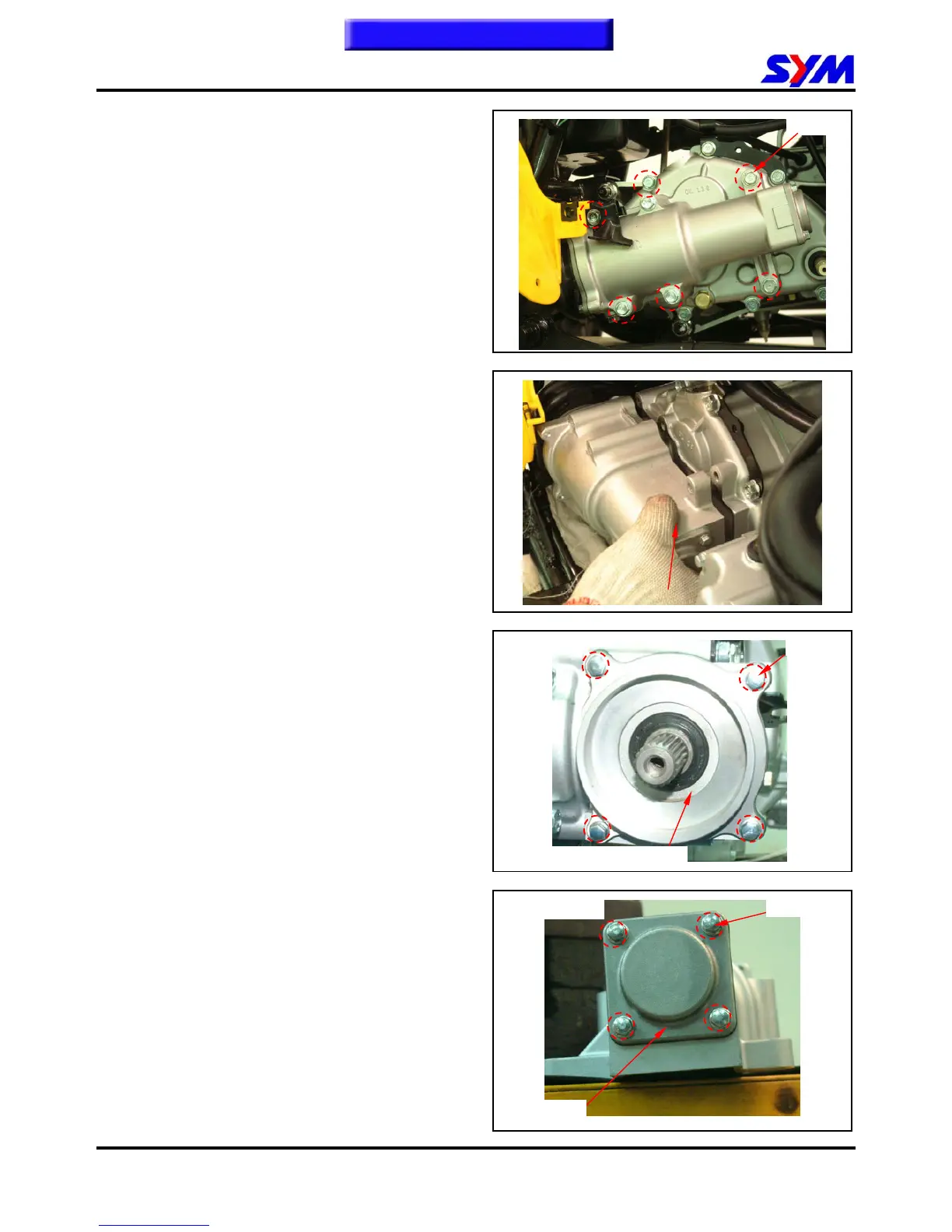

Remove gear box cover bolts (9 bolts) and then
remove the cover.
Remove mission box.
Disassembly of mission box.
Remove 4 bolts from mission box rear cover.
Remove mission box rear cover.
Remove 4 bolts from mission box front cover,
Remove the mission box rear cover and gasket.
.
`
To this chapter contents
4 bolts
mission box rear cove
r
6 bolts
Reverse shaft
4 bolts
Reverse shaft
