9. FINAL DRIVING MECHANISM
9-5

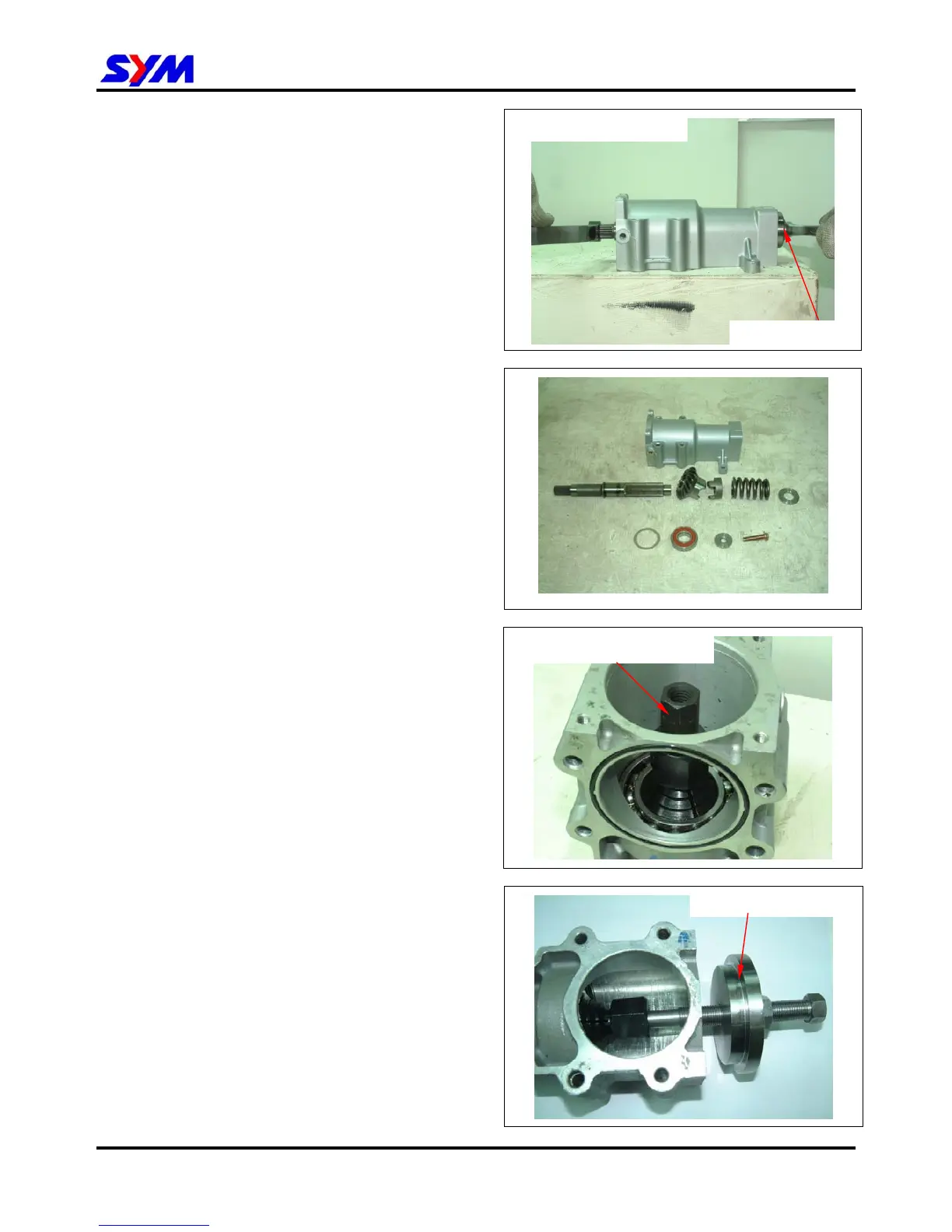

Remove mission shaft bolt with special tools.
special tools
tools number：SYM-2345100-RFA
tools name：OUTPUT SHAFT WRENCH
take out all parts from mission box.
take out cir clip.
Put the pulling out device in the bearing 6009.
special tools
tools number：SYM-6204025
ø45
tools name：F07 INNER BEARING PULLER.
Load special tool onto the inner bearing puller.
tools number：SYM-2140101 RFA 6009
tools name：RFA MISSION BOX 6009 BEARING
DISMANTLING DEVICE.
OUTPUT SHAFT WRENCH
mission shaft bolt
OUTPUT SHAFT WRENCH
F07 INNER BEARING PULLER ø45
. SYM-2140101 RFA 6009
