16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-6

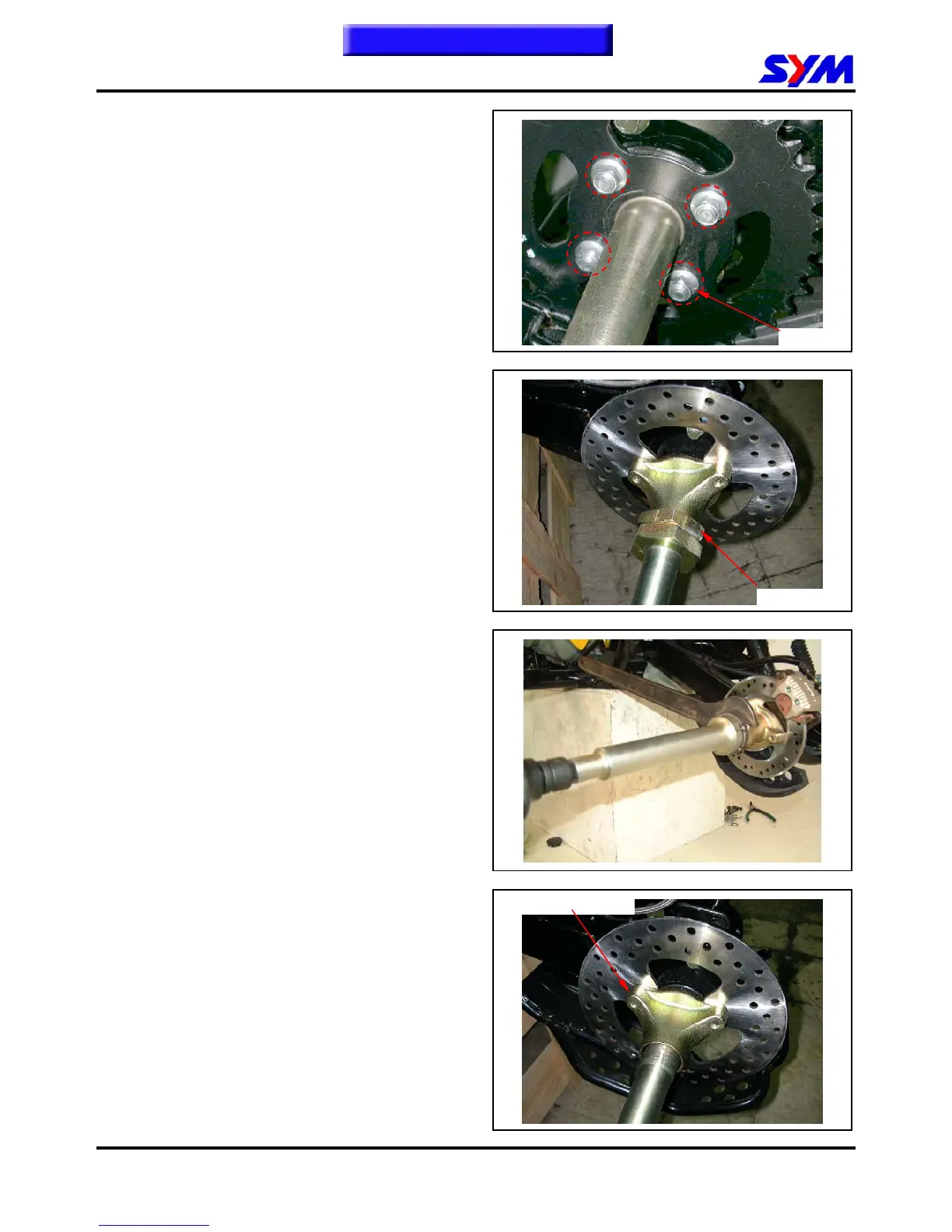

Remove 4 nuts, and remove driven sprocket.
Bend out the rear axle nut fixed plate.
Bend out the rear wheel axle holder nut fixed
plate.
Remove rear wheel axle nuts.
Special tool:
Tool number：SYM-HT06007
Tool name：rear axle nut wrench (55mm)
Tool number：SYM-4230200-RB1 RFA.
Tool name：rear axle nut socket.
Remove rear brake disk bracket and disk.
To this chapter contents
Fixed plate
4 nuts
Brake disk bracket
