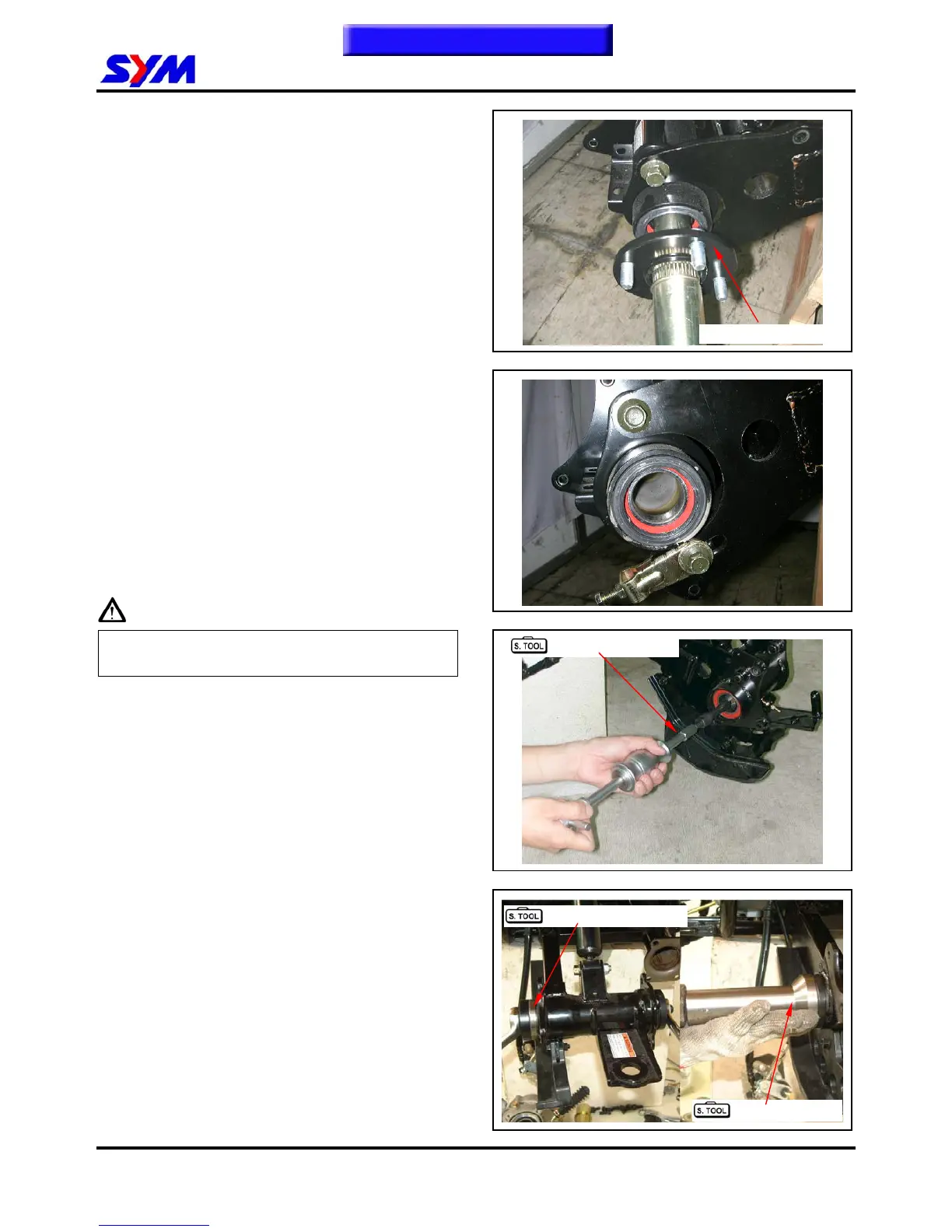

16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-7
Remove rear wheel axle and driven sprocket
holder.
Inspection
Check bearings on rear wheel axle bearing seat.
Rotate each bearing’s inner ring with fingers.
Check if bearings can be turned in smooth and
silent, and also check if bearing outer ring is
mounted on bearing seat.
If bearing rotation is uneven, noising, or loose
bearing mounted, then replace it.
Check oil seal for wear or damage, and replace it
if necessary.
Disassembly
Caution
y Never install used bearings. Once bearing
removed, it has to be replaced with new one.
Remove bearing and seal from rear wheel axle
bearing seat using following tools.
Special tool:
Tool number：SYM-6204025
Tool name：Inner bearing puller
Remove bearing spacer.
Assembly
Install new left side bearing and seal into rear
wheel axle bearing seat.
Install rear wheel axle bearing inner spacer.
Install new out right bearing and seal into front
wheel hub.
Apply with grease onto the oil seal lip of rear
wheel axle.
Special tool:
Tool number：SYM-2310000 RB1 RFA A6007
Tool name：install bearing puller
Tool number：SYM-2313000 RB1 RFA
Tool name：Oil seal drive (48×62×7)
Tool number：SYM-2315000
Tool name：Oil seal drive (43×62×12)
To this chapter contents
Inner bearing puller
Driven sprocket holder
Install bearing puller
oil seal drive
