13. BODY COVER
13-9

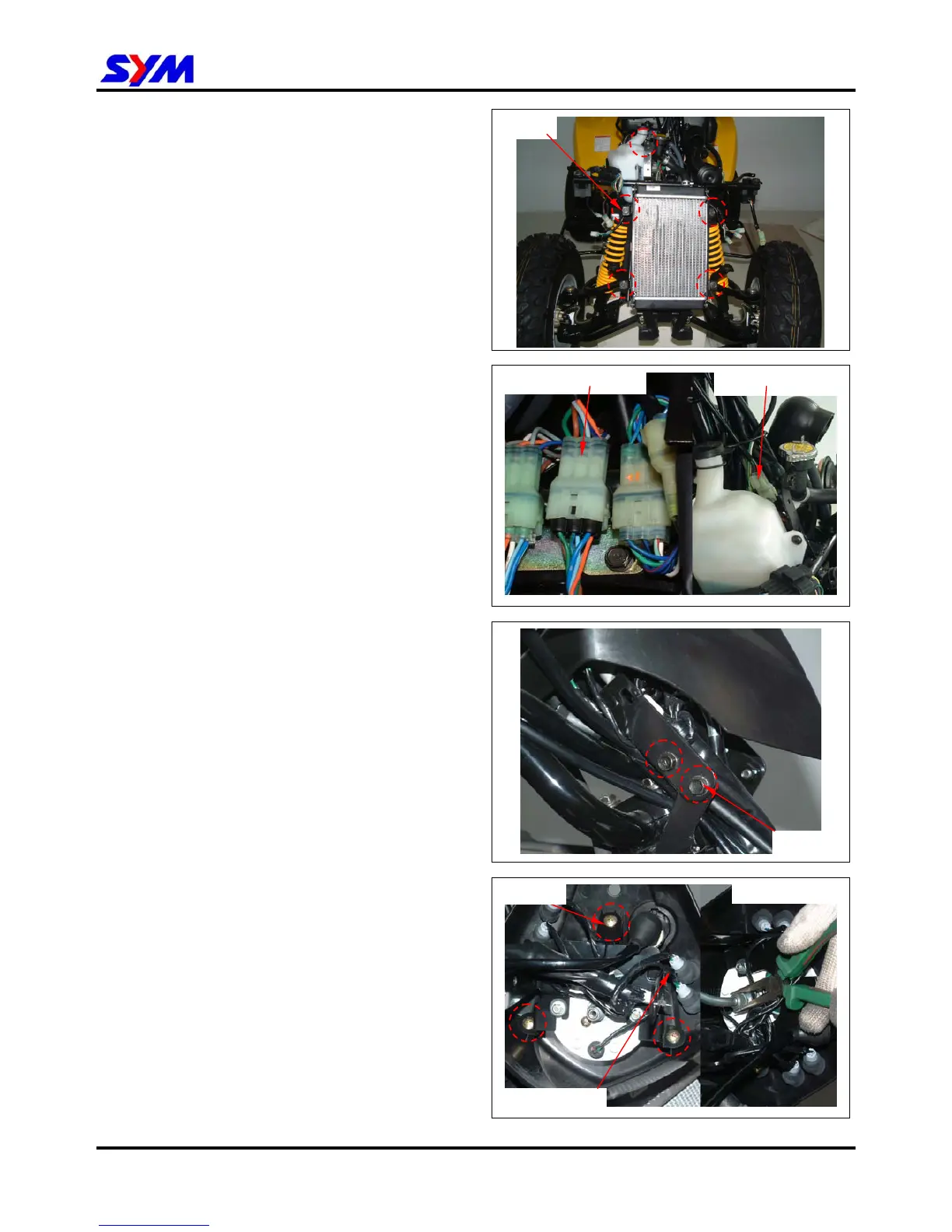

Meter cover
Remove
Remove the front fender.
Remove the radiator side 5 bolts.
Remove couplers of meter and main switch
couplers.
Remove 4 bolts from meter stay.
Remove 3 screws and speedometer lamps, them
disassemble steering cover and speedometer.
5 bolts
Speedometers couplers
Main switch couplers
4 bolts
Speedometer cable
3 screws
Speedometer lamps
