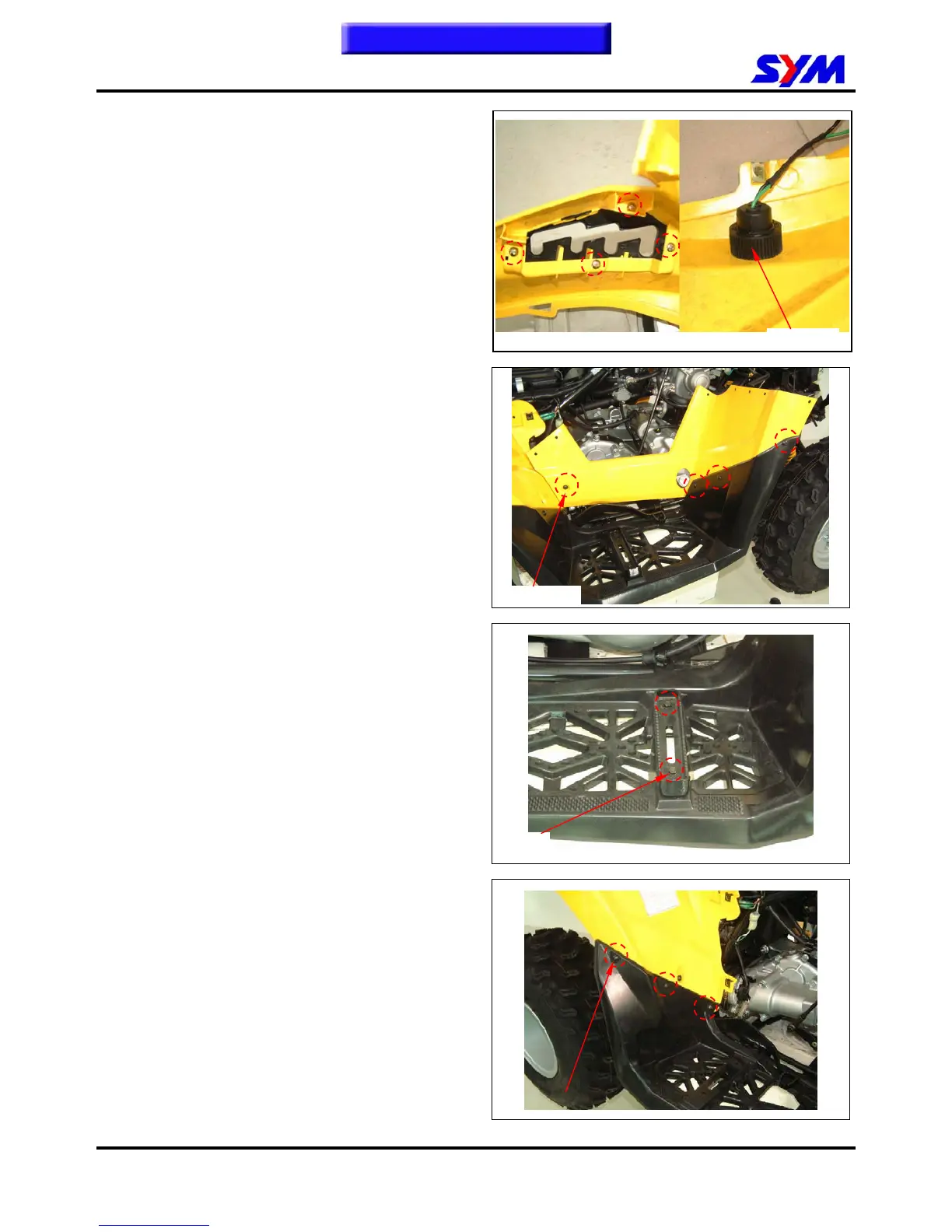

13. BODY COVER
13-8
Remove power outlet setting nut, and then remove
power outlet.
Remove 4 screws, and then remove support cover
Installation
Install in reverse order of removal procedures.
SIDE LOWER COVER
REMOVE
Remove right and left side lower covers screws
(each side 4 screws), and then remove side lower
covers.
Installation
Install in reverse order of removal procedures
Footrest
REMOVE
Remove
Remove right and left foot peg bolts(each side 2
bolts), and then remove the foot peg.
Remove right and left footrest screws(each rear
side 3 screws), and then remove the footrest.
Installation
Install in reverse order of removal procedures
To this chapter contents
Setting nut
4 screws t
2 bolts
