9. FINAL DRIVING MECHANISM
9-7

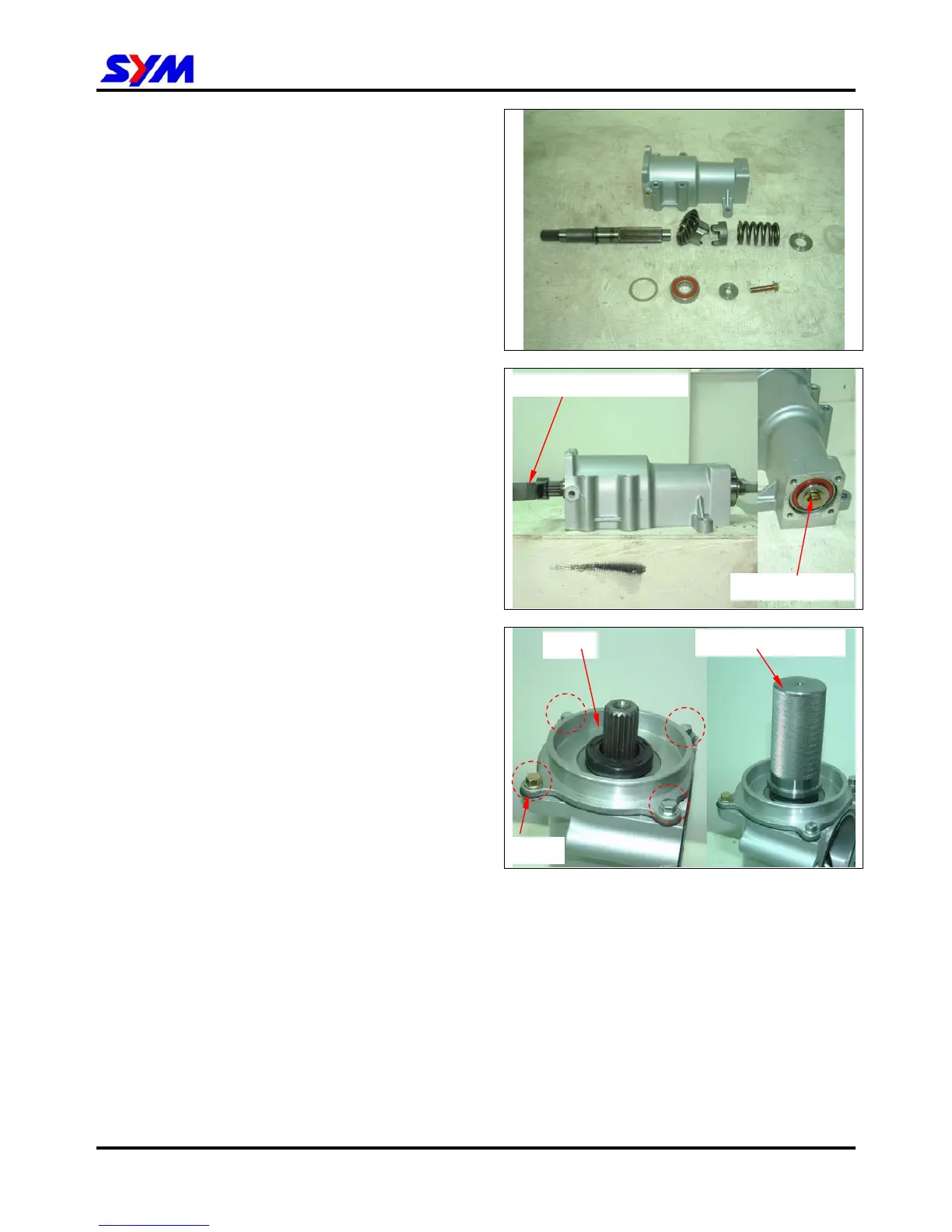

Installation all parts for mission box. In reverse of the
disassembly.
Into all parts them lock the mission shaft bolt with
special tools.
special tools
tools number：SYM-2345100-RFA
tools name：OUTPUT SHAFT WRENCH
g/
Installation the mission box rear cover. then Lock 4
bolts
Installation the mission box rear cover oil seal TC
25*40*9 with special tool.
special tools
tools number：SYM-9120100-RFA
tools name：25*40*9 MISSION BOX REAR COVER
OIL SEAL DRIVE.
OUTPUT SHAFT WRENCH
mission shaft bolt
4 bolts
oil seal
25*40*9 OIL SEAL DRIVE
