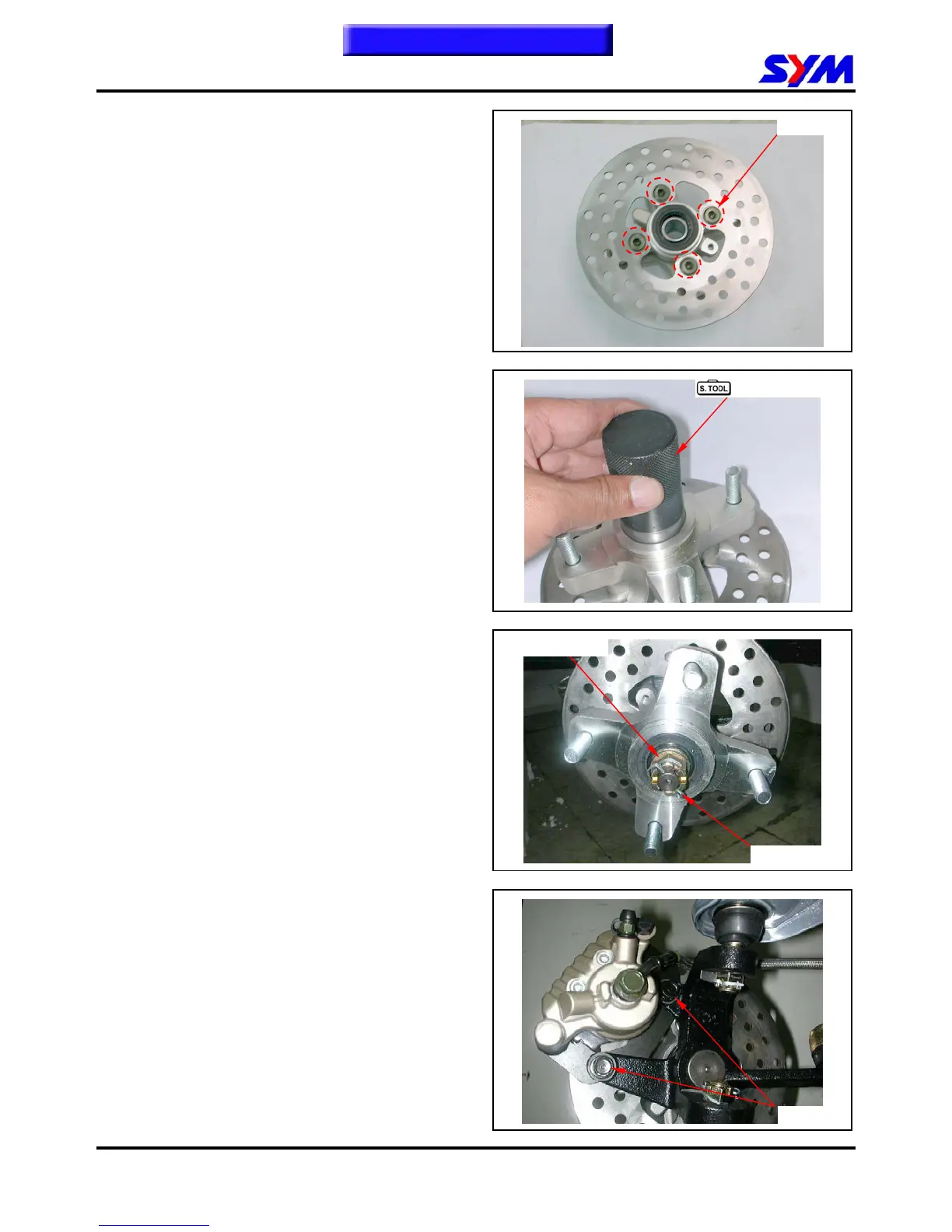

14. FRONT BRAKE & FRONT WHEEL
14-6
Remove 4 socket bolts, and then remove the
brake disk from wheel hub.
Assembly
Install brake disk.
Install new inner side bearing and seal into front
wheel hub.
Install front wheel hub bearing inner spacer.
Install new out side bearing and seal into front
wheel hub.
Special tool:
Tool number：SYM-9620000
Tool name ：Bearing driver (6203)
Oil seal drive (24×35×7)
Installation
Install the front brake disk to the wheel hub.
Install wheel hub and brake disk on to knuckle.
Install wheel hub washer and tighten the wheel
hub nut.
Torque: 5.0kgf-m
Install cotter pin.
Install front brake caliper.
Torque: 3.25kgf-m
To this chapter contents
4 bolts
Bearing driver
2 bolts
Wheel hub nut
Cotter pin
