16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-18

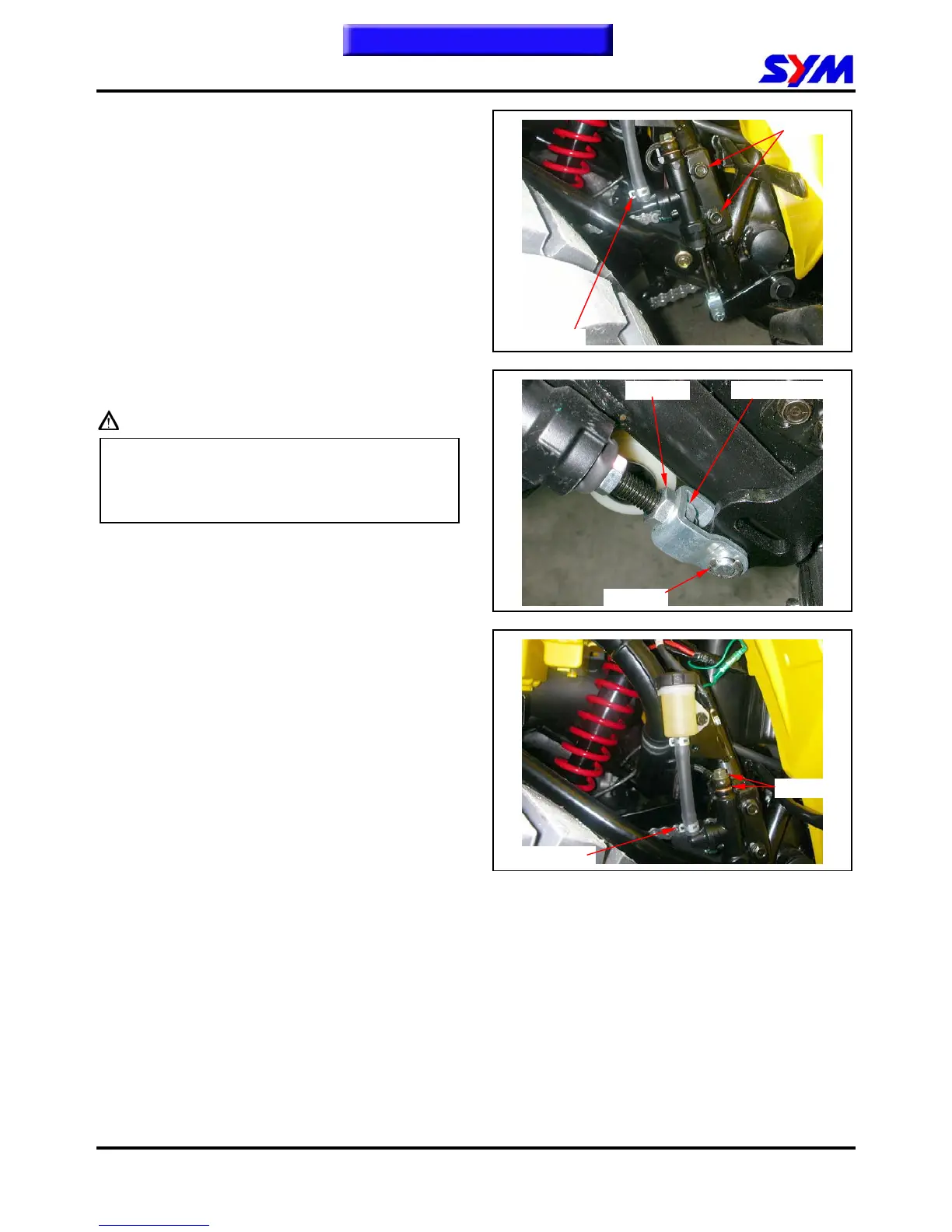

Right footrest side – rear brake master cylinder
B
Install the master cylinder bolts and the master
cylinder.
Install brake push rod to the brake pedal, and
install pin and E type clip.
Caution
To adjustment brake pedal, you must be
removed push rod pin fist.
Loosen lock nut, and turn adjustment nut and
push rod bracket to adjustment brake free play.
Install fluid hose and clamp.
Connect brake hoses with 2 new washers.
Tighten the brake hose bolt to the specified torque
value.
Torque: 3.5kgf-m
Make sure the hose is installed correctly.
Install all wires, hoses, and components carefully
so avoid to twisting them together.
Add specified brake fluid and bleed the system.
To this chapter contents
E type clip
2 washers
Hose clamp
Lock nut Adjustment nut
2 bolts
Hose clamp
