Systema EOLO BC RT - Eolo Bc; Nbc Burner 85 ÷ 120 Rt

22
3
SYSTEMA EOLO RT rev. 09ENIT04052021
FEATURES

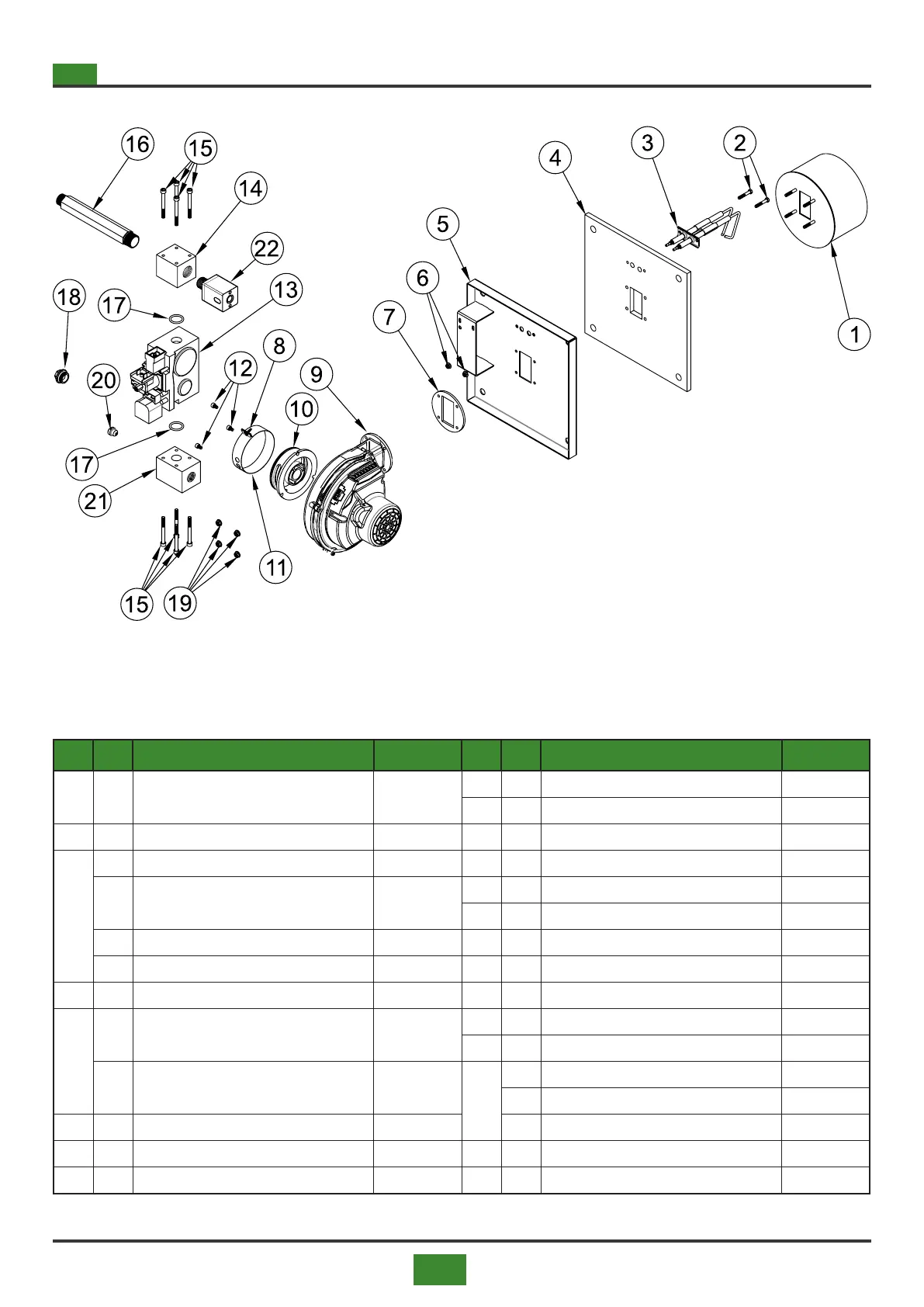

Fig. 3.9 Exploded view of burner for Eolo modd. BC / NBC 85 ÷ 120 RT
3.10 EOLO BC / NBC BURNER 85 ÷ 120 RT
Pos Qty Description Code Pos Qty Description Code
1 1 Burner head 85 ÷ 120 (Ø159x140) 94PAGL6105
9 1 EBM NRG 137 fan (Eolo 85 ÷ 120) 94CNVE0016
10 1 Air / gas mixer 94CNMI0010
2 2 Electrode xing screw 10WSWK2148 11 1 Secondary air ring nut (Eolo 85 ÷ 120) 94CNOP0022
3
1 Pair of electrodes (SAPCO) 94CNEL0022 12 3 Air / gas mixer locking screw 10WSSR2095
2
Single electrode SAPCO 137 * 4 mm Kantal
APM
94CNEL0024
13 1 Gas solenoid valve 94CNVA0011
14 1 Gas connection (Eolo 85 ÷ 120) 94ARPG6000
2 SAPCO single electrode 94CNEL0023 15 8 Solenoid valve assembly xing screw 10WSSR2110
2 Single CAST electrode 137 * 4 mm Kantal 94CNEL0019 16 1 Gas connection (Eolo 85 ÷ 120) 94ARPG6003
4 1 Thermal insulating 94CNGU0070 17 2 O-Ring gasket 01CNOR2525
5
1
Eolo 85 ÷ 120 burner support (SAPCO
electrodes)
85PLDM0104
18 1 3/4 cap 94ARKO6008
19 4 M5 nut xing head / fan block 10WSNA2041
Eolo 85 ÷ 120 burner support (CAST electro-
des)
85PLDM0105
20
1 Gas nozzle Ø 8,5 (Eolo 85 ÷ 120 - G 20) 94ARDY1000
1 Gas nozzle Ø 6.0 (Eolo 85 ÷ 120 - G 30) 94ARDY1002
6 2 Electrode xing nut M5 10WSNA2041 1 Gas nozzle Ø 6.3 (Eolo 85 ÷ 120 - G 31) 94ARDY1003
7 1 Thermal insulation fan 94CNGU0061 21 1 Injector connection and gas nozzle holder 94ARSZ6006
8 1 Air / gas mixer ring nut tightening screw 10WSSR2111 22 1 Gas pressure switch (optional) 05CEPR0317
Tab. 3.9 Exploded view of burner for Eolo modd. BC / BL 85 ÷ 120 RT
