SYSTEMA EOLO RT rev. 09ENIT04052021
FUNZIONAMENTO
5.3 SCP674V202 SLAVE BOARD PROGRAMMING
(Optional - component available upon request)
5.3.1 SCP674V202 card encoding for network operation
Using the SW1 + SW2 switches it is possible to assign an address to each network interface (slave card
SCP674V202) or disable the network port if the card is mounted on a single machine, disconnected from the
network.
The network controller recognizes the network interfaces by the number with which they are coded
Important
Do not assign the same address to two or more SLAVES (network interface) in order to avoid

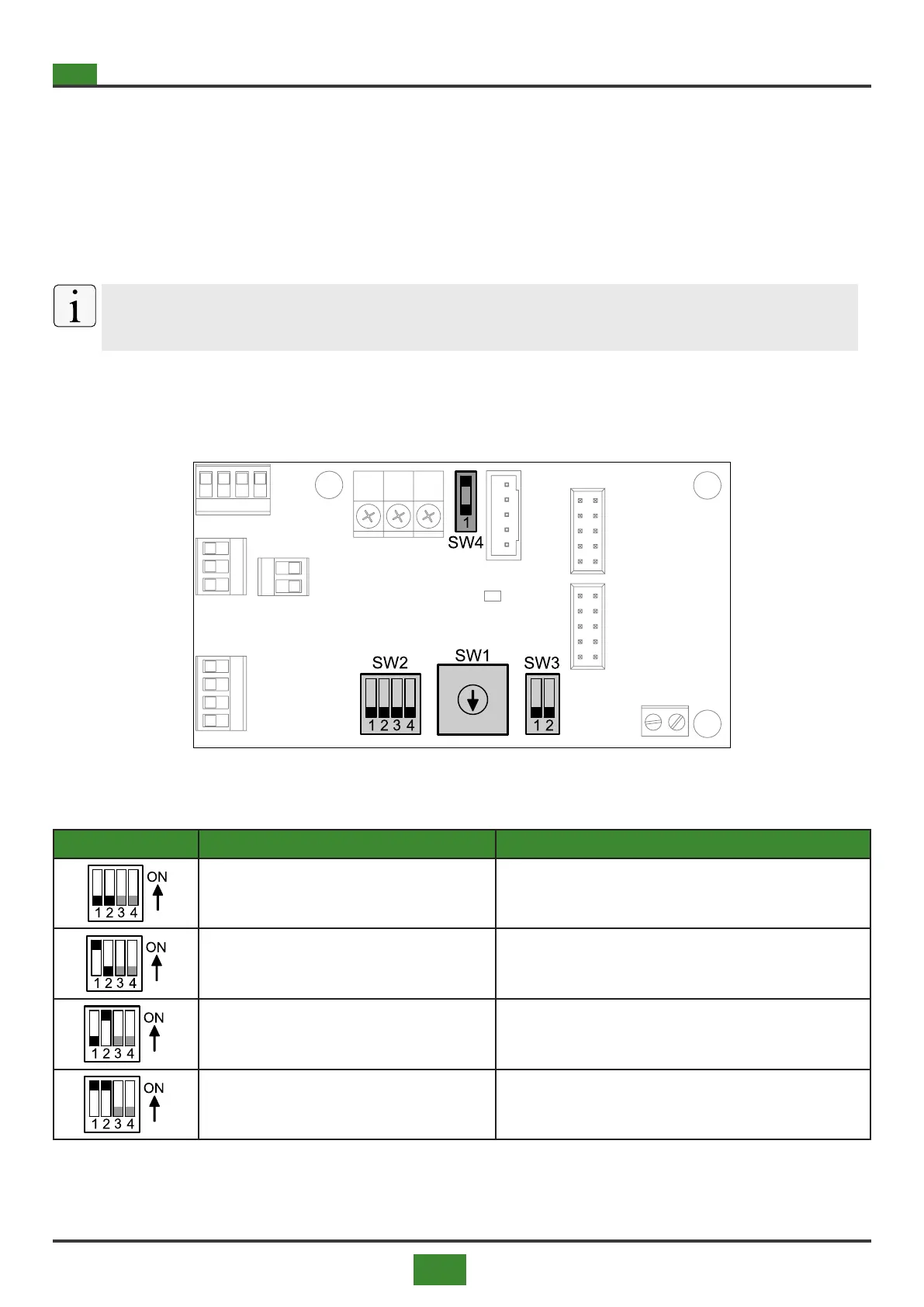

Fig. 5.3 DIP Switch position on the SCP674V202 slave board
Tab 5.13 Address network interface
SW2 (DIP 1 and 2)
SW1 position (rotary) SLAVE address (module SCO674V202)
0...F 0...15
0...F 16...31
0...F 32...47
0...F 48...59
