Systema EOLO BC RT - Connection of the I²NET Network Panel to Earth and SCP674 V122 T Panel

46
4
SYSTEMA EOLO RT rev. 09ENIT04052021
ELECTRICAL CONNECTION
A
A
Devices with SCP674V202 slave card
Enable the end-of-line resistor by setting dip1 of SW4 on
the slave card to ON only in the last network card, the one
furthest away from the master device
4.1.15 Connection of the I²NET network panel to earth and SCP674V122T panel

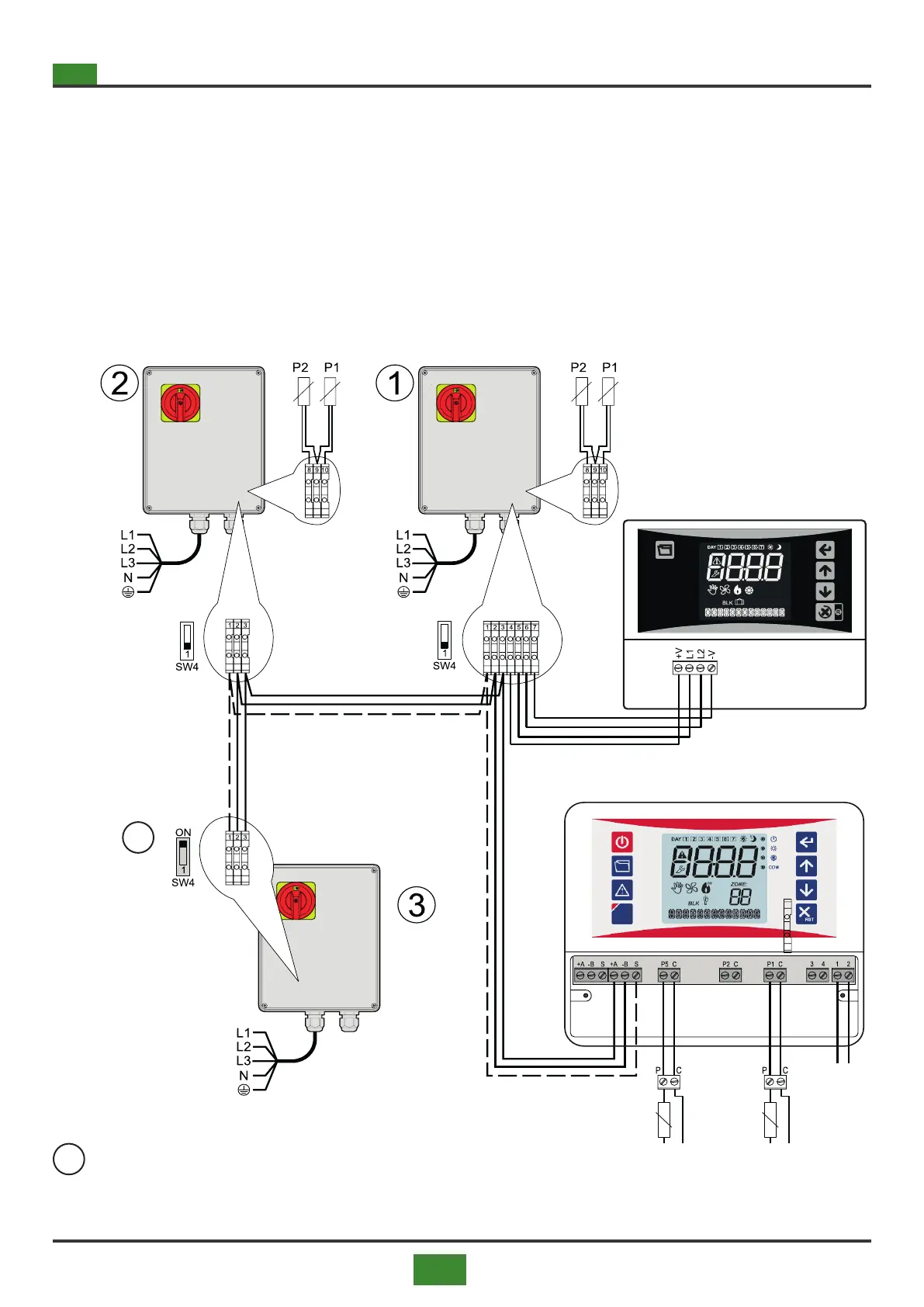

In g. 4.18 shows an example of an I²NET network, generator n.1 is also equipped with a SCP674122T panel
for local control of the appliance.
The ambient temperature and the external temperature for generators n.1 and n.2 are measured with the
probes connected to the relative appliances; generator 3 is managed with the temperatures detected by the
probes (PE; PA1) connected to the network controller panel
SUPPLY 1N ~ 50 Hz 230 V
Fig. 4.18 Connection with ground control panel of the I²NET network and SCP674V122T panel
POWER SUPPLY
3N/PE~50Hz 400V
PE = probe external temperature cod. 00CESO2688
PA1 = zone 1 room temperature probe cod. 04CEGL3001
P1 = room temperature probe cod. 04CEGL3001 connected to the appliance
P2 = probe external temperature cod. 00CESO2688 connected to the appliance
