7.3 SERVICE ACCES
The unit must be positioned in such a way as to avoid obstacles in the immediate vicinity that prevent mainte-
nance operations and the fresh air intake (bu󰀨er zone)

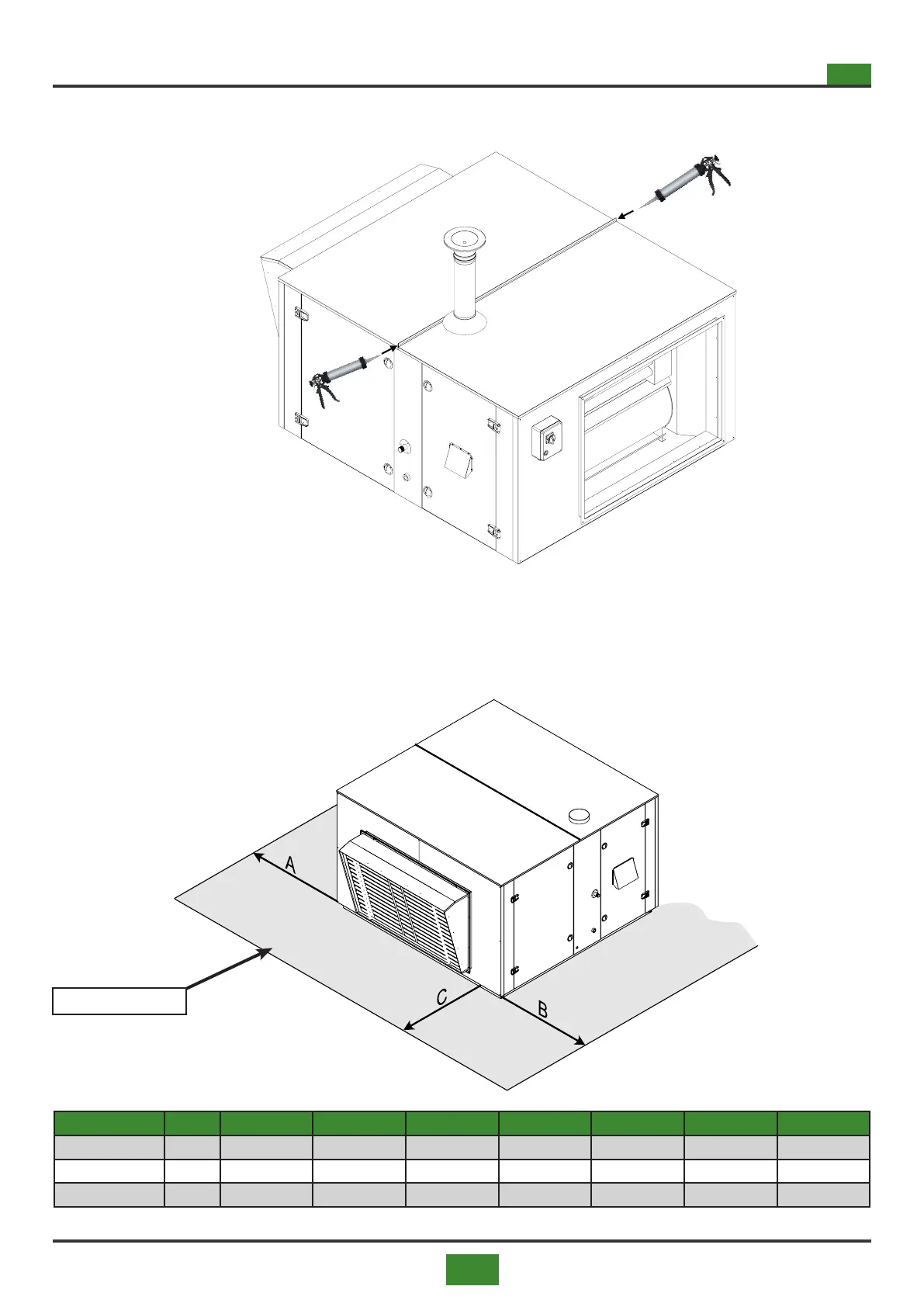

Fig. 7.6 Respect area
Tab. 7.1 Respect area
Fig. 7.5 Silicon coating of the fram
Dimension U.M. 25/35 45/65 85/100/120 150 200 250 300
A mm 900 900 1000 1100 1100 1100 1250
B mm 900 900 1000 1100 1100 1100 1250
C mm 500 600 1000 900 1000 1100 1300
Respect area
