ELECTRICAL CONNECTION

4.1.11 Electrical connection of plug fan (optional) with potentiometer

POWER SUPPLY

3N/PE~50Hz 400V

Connection to motherboard SCP674V130A1

Plug fan

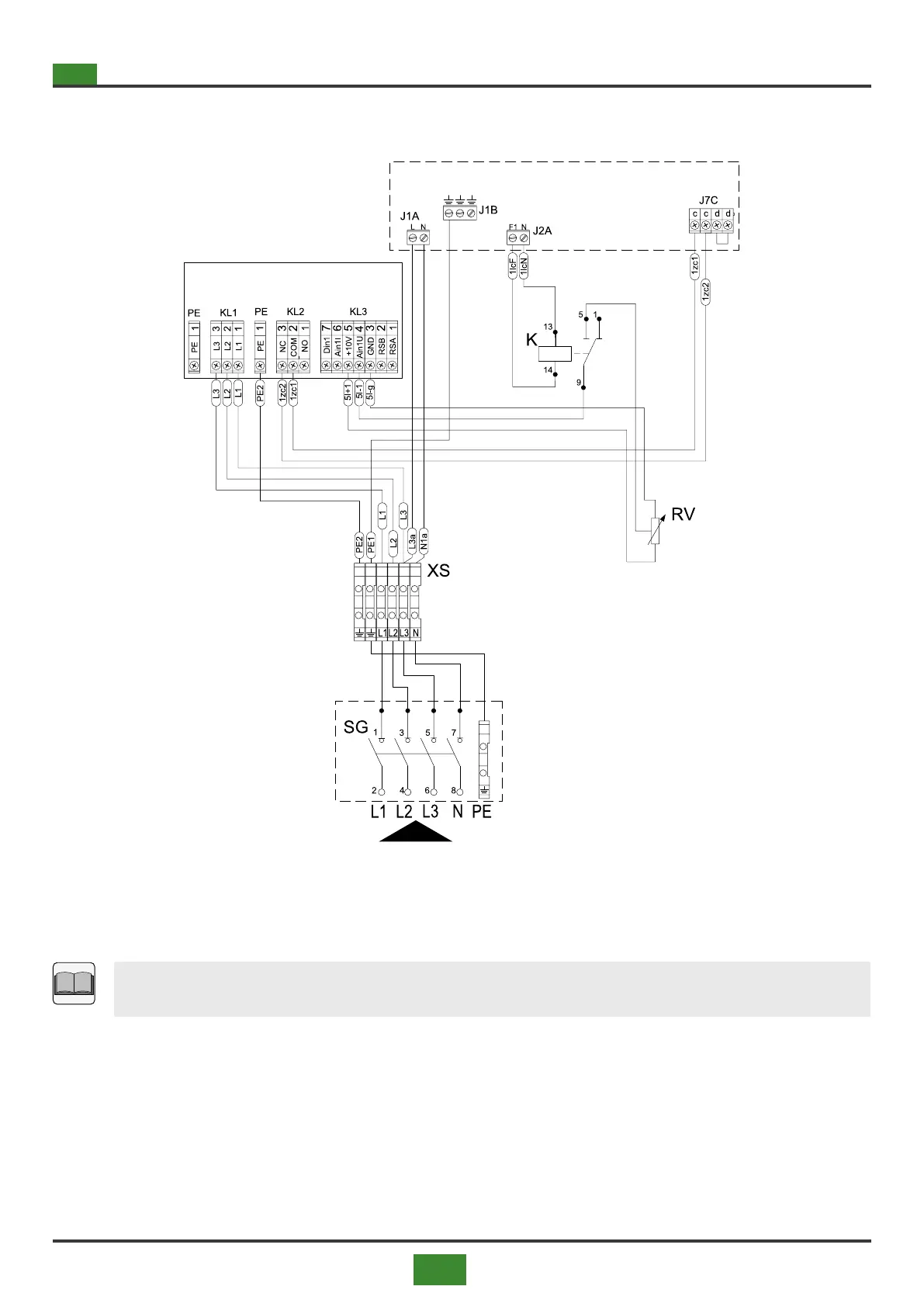

Fig. 4.12 Electrical connection of a plug fan with potentiometer

Please note

For the complete wiring of the appliance see also paragraphs 4.1.3 to 4.1.9.
