5.5.3 Duct connections

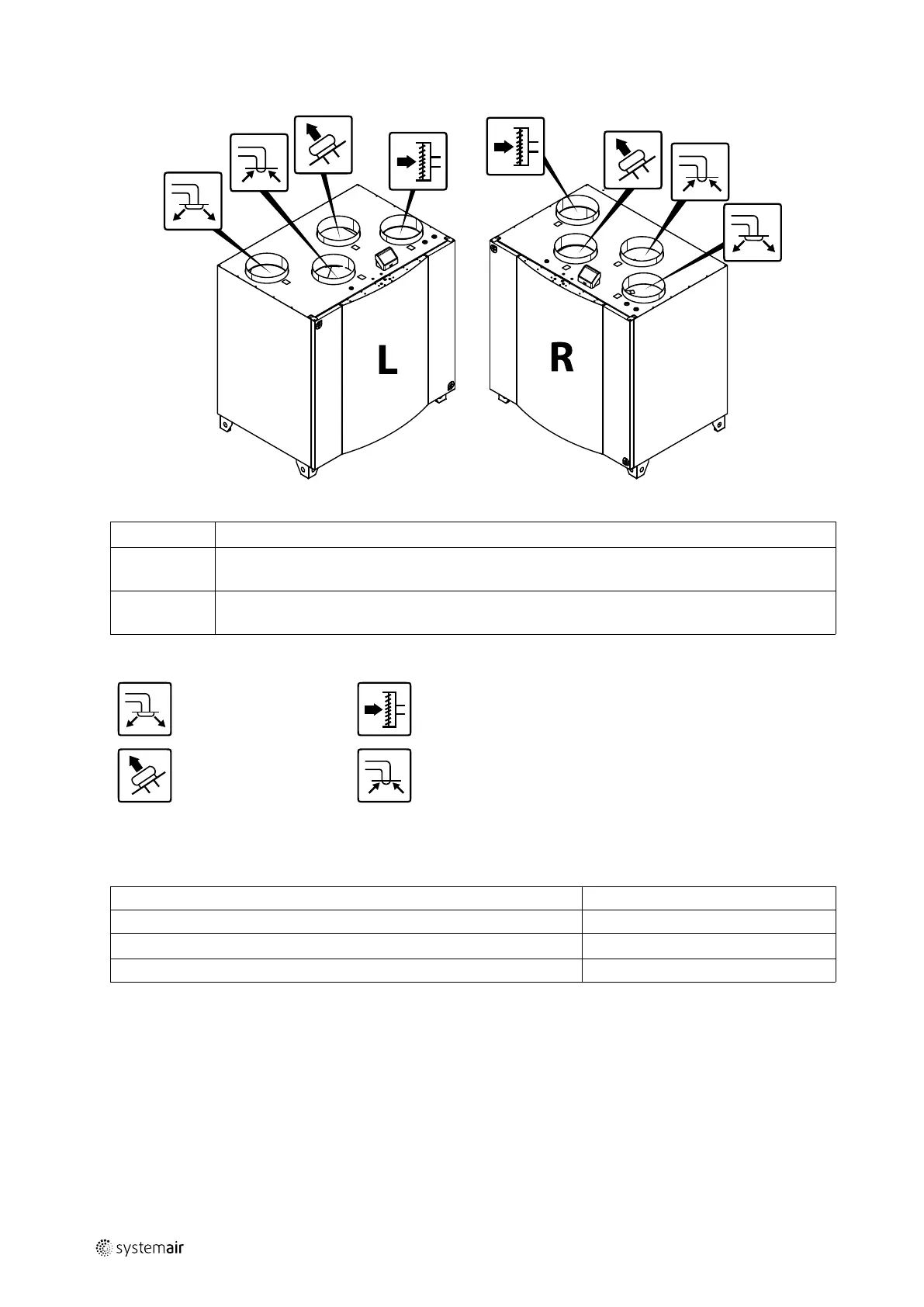

Fig. 3 Duct connections
Position Description
R
Right hand model (Supply air connection is situated on the right hand side of the unit viewed from
the front)
L
Left hand model (Supply air connection panel is situated on the left hand side of the unit viewed
from the front)
Symbol
Description
Symbol
Description
Supply air
Outdoor air
Exhaust air
Extract air
5.5.4 Power consumption and fuse size
Re-heater
1670 W
Fans 336 W
Total power consumption
2006 W
Fuse 10 A
5.5.5 Required space
In order to be able to remove filters (figure 4) the unit needs to be installed with sufficient space in front as described
below.
211480 | B003
