GB
Product information |
9
5.5.2 Dimensions and Weight, L model

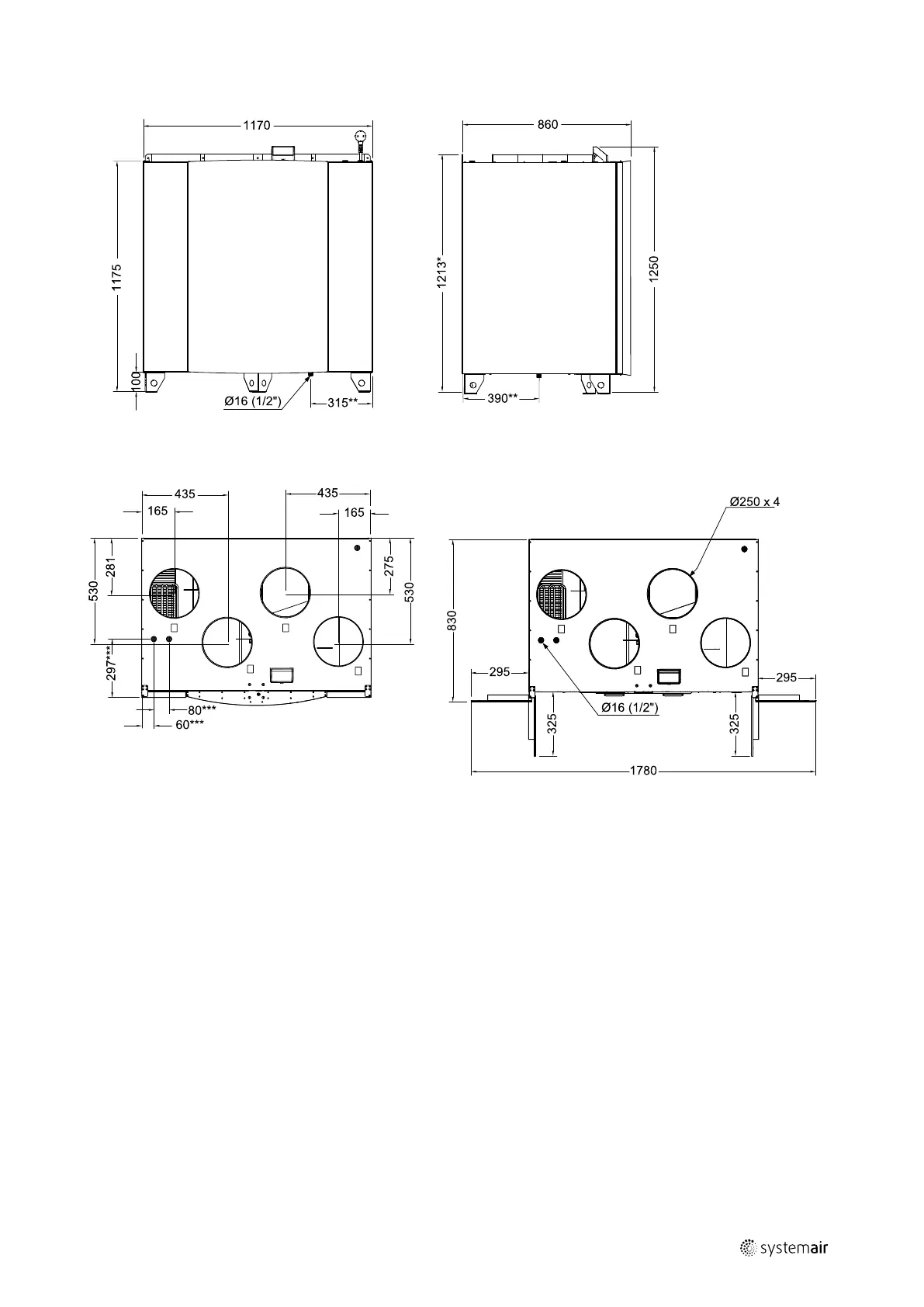

Fig. 2 Dimensions of left hand unit
* Height with mounting bracket
** Drainage connection
*** Water coil connections
The unit weight is 188 kg.
211480 | B003
