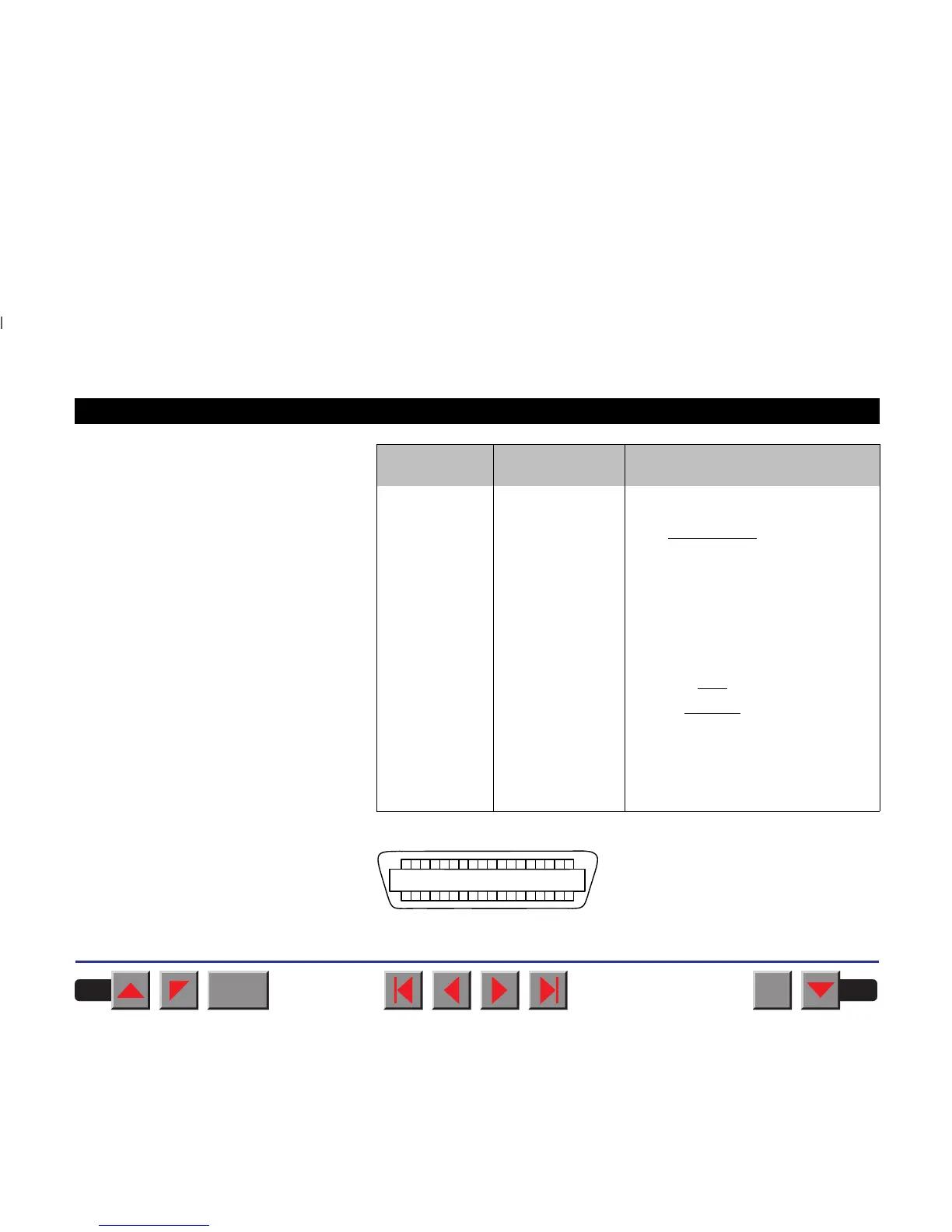

Connector no.
Direction
Printer– PC
Signal
12
↔
PAPER EMPTY (PE)
13
↔
SELECT
14
↔
AUTO FEED (active low)
15 Not used
16

SIGNAL GROUND
17

CHASSIS GROUND
18

+5 V (I
max
= 500 mA)
19 – 30

SIGNAL GROUND
31
←
INIT (active low)
32
↔
ERROR (active low)
33

SIGNAL GROUND
34 – 35 Not used
36
←
SELECT IN
1
36 19
18
Transmission length: max. 2,0 m
