Electrical Troubleshooting
Charger Troubleshooting Page 5

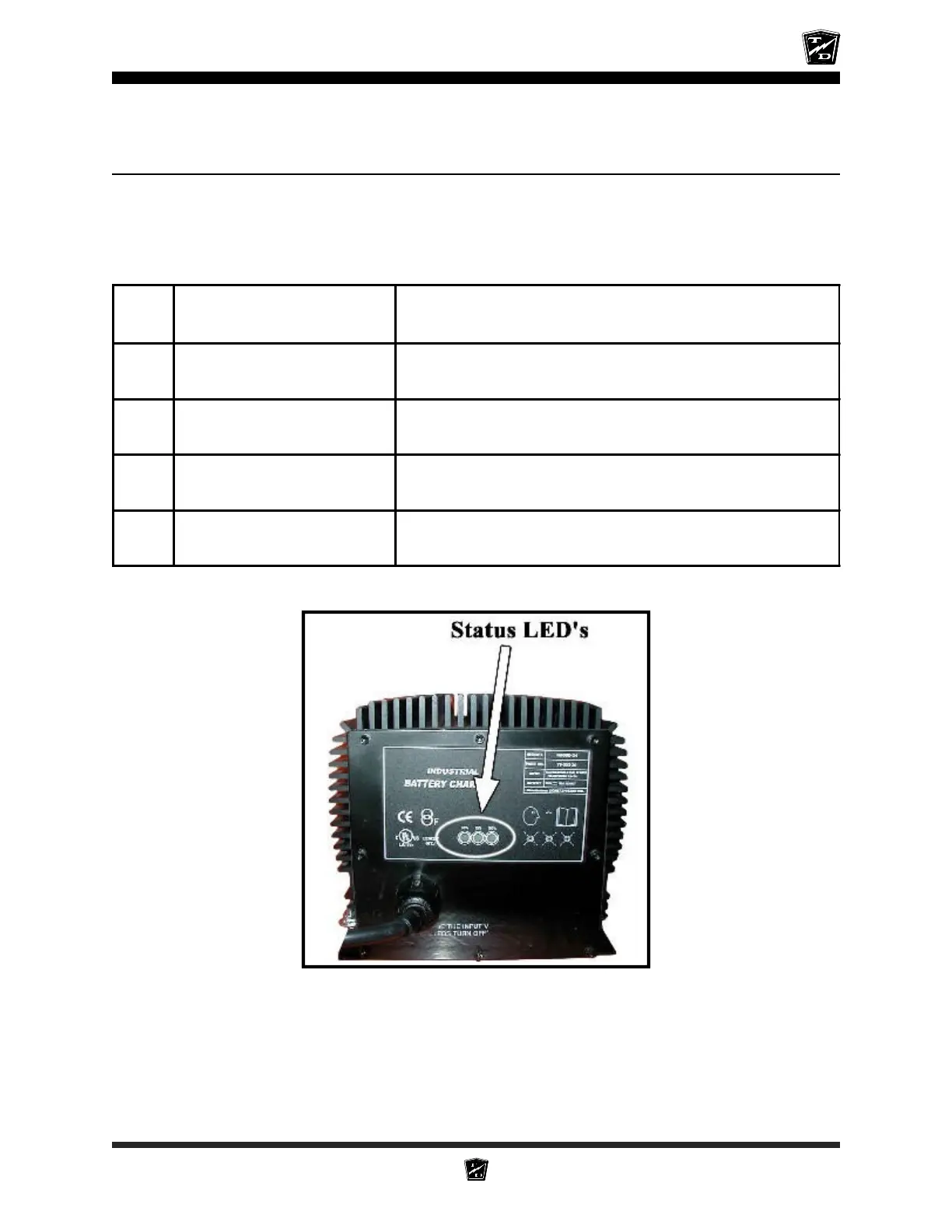

STATUS LED ERROR CODE
There are three status lights (LED’s) on the charger name plate. These LED’s normally indicate the current
operating state of the charger. All three LED’s flashing indicate an error in the charger. See the table below
for an explanation if the error codes:
Error
Code
Description Action Required
1
Reverse polarity or open circuit to
the batteries
Check wiring for corrosion, loose connections. broken wires and
proper connection to the batteries
2
AC line voltate too high or too
low
Check the input voltage.
It must be within 96-132VAC or 196-266VAC
3 Charger overheated
Wait for charger to cool, the charger will automaticaly restart. Inspect
for dirt or debris on the charger cooling fins and clean as required.
4 Input or Output over current Charger will automaticaly correct for this condition and restart
