3-49
Installing New Brushes
In order to install new brushes in the motor use the following procedure:
1. Remove the motor from the rear end assembly.
2. Remove the motor cover revealing the brush holder and brushes.
3. Disassemble the brush studs from the cover.
4. Remove the old brushes and install the new ones.
5. Inspect the commutator for wear.
6. Replace the motor cover and reinstall the motor on the rear end
assembly.
Motor Disassembly
1. Remove the motor.
2. Disassemble the motor.
NOTE: Mark the housing to insure proper alignment when
reassembling.
3. Inspect the armature and commutator.
4. If the bearings were removed due to wear, install new bearings on
the shaft. (Other wise continue on to step #5.)
5. Reassemble the motor.
6. Install the motor onto the rear end assembly.

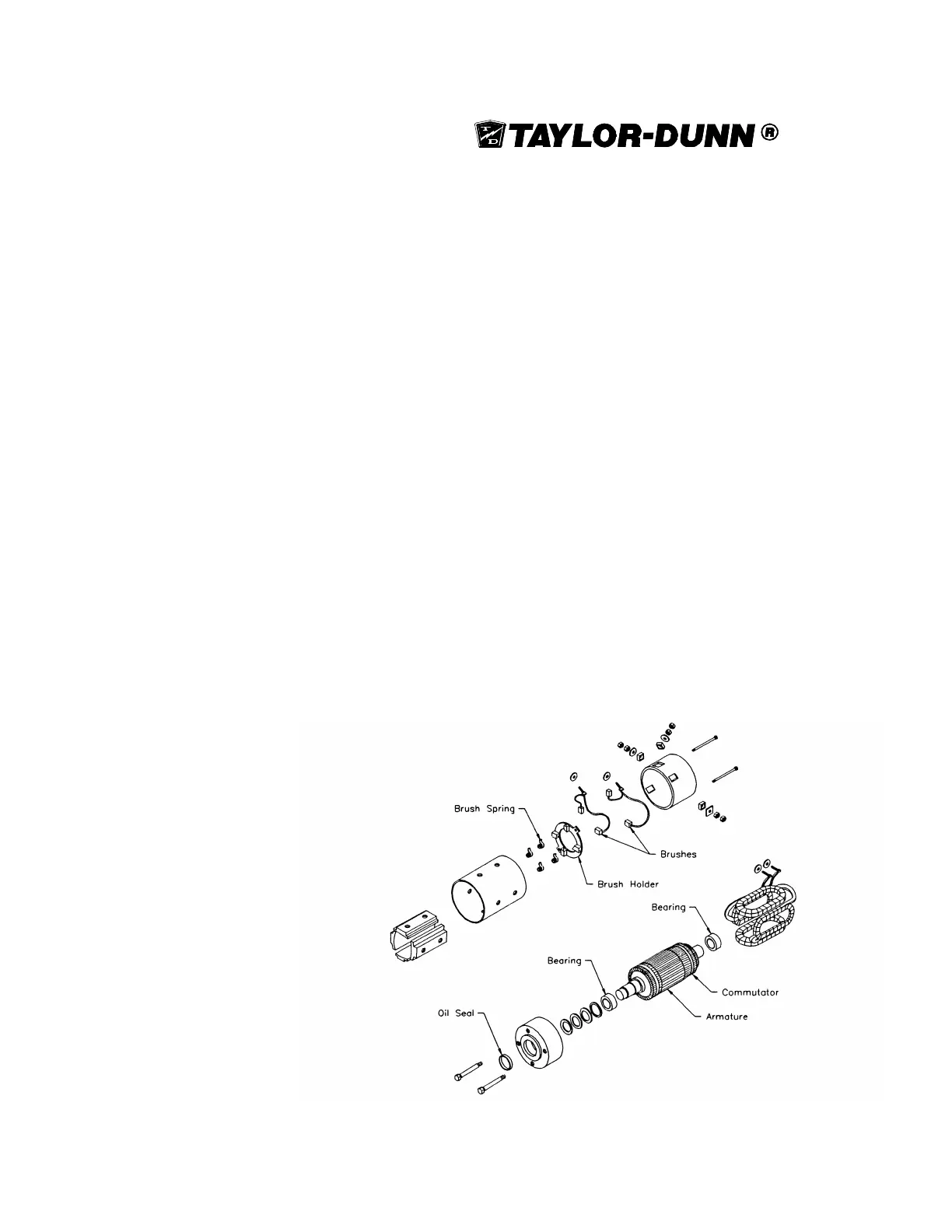

Exploded View of Motor for All Models
