Taylor-Dunn MX6-00 - Changing the Differential Oil; Motor Removal

3-40
SECTION 3

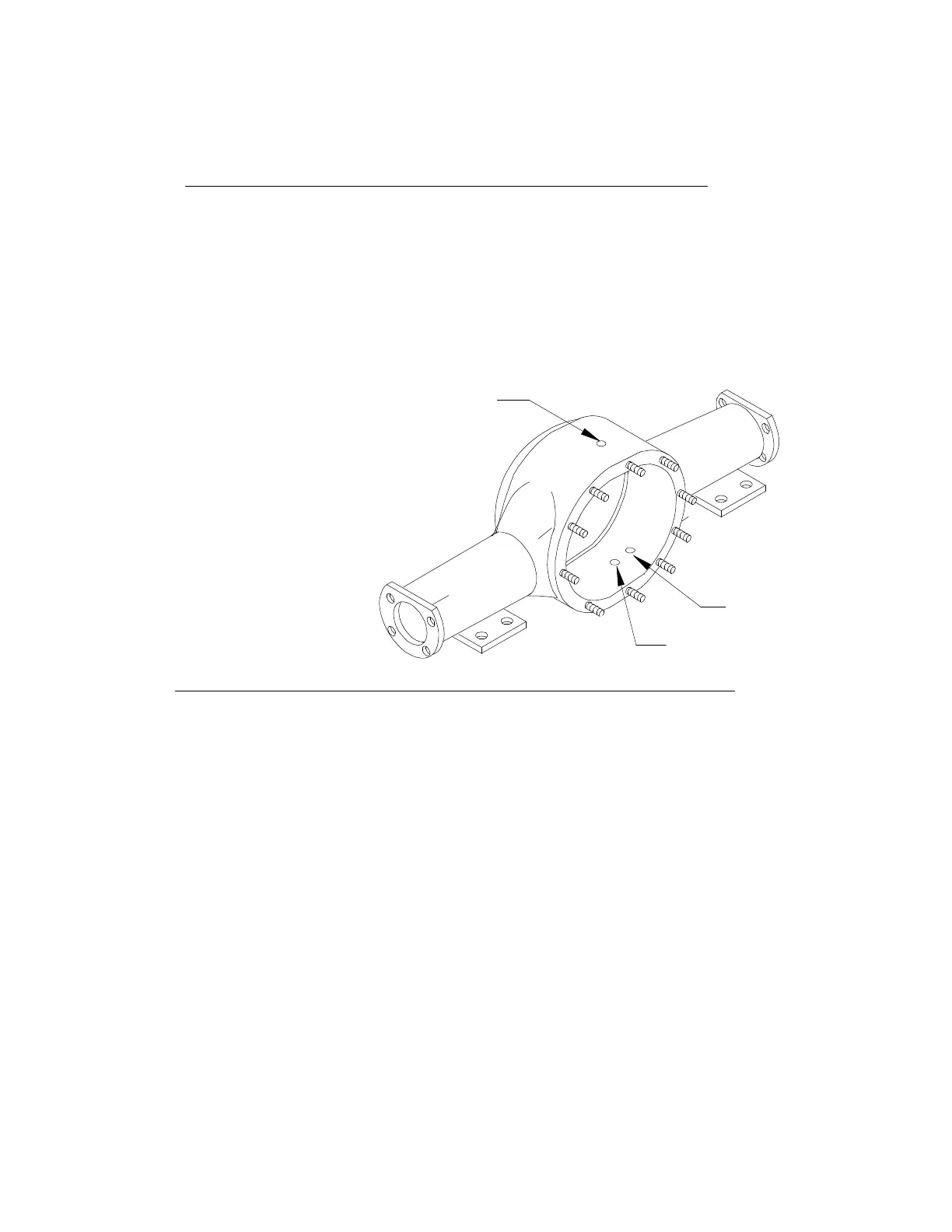

Fill
Drain
Level
Motor Removal
In order to remove the motor from the drive assembly, use the following procedure:
1. Park the vehicle on a level surface and block the wheels to prevent
movement, then disconnect the batteries.
2. Remove the deck board and place it out of the way.
3. Disconnect the batteries.
4. Mark the wire leads on the motor to insure their proper location
when reinstalling the motor.
5. Remove the wire leads from the motor and loosen the motor mount clamp.
6. Loosen the drive belt adjusting bolt lock nut and turn the adjusting bolt
until the belts can be easily removed.
7. Remove the drive belts from the motor pulley.
8. Remove the four motor mounting bolts.
9. Remove the motor assembly from the vehicle.
10. Install in reverse order, adjust the drive belts
Changing the Differential Oil
1. Place a 3 quart or larger drain pan under the drive.
2. Remove the differential drain plugs.
3. Replace the drain plugs and remove the differential fill and level
plugs.
4. Install oil into the differential through the filler hole until the oil
starts to come out of the level hole (approximately 2 quarts).
5. Install the level plug.
6. Install the remaining plugs.
